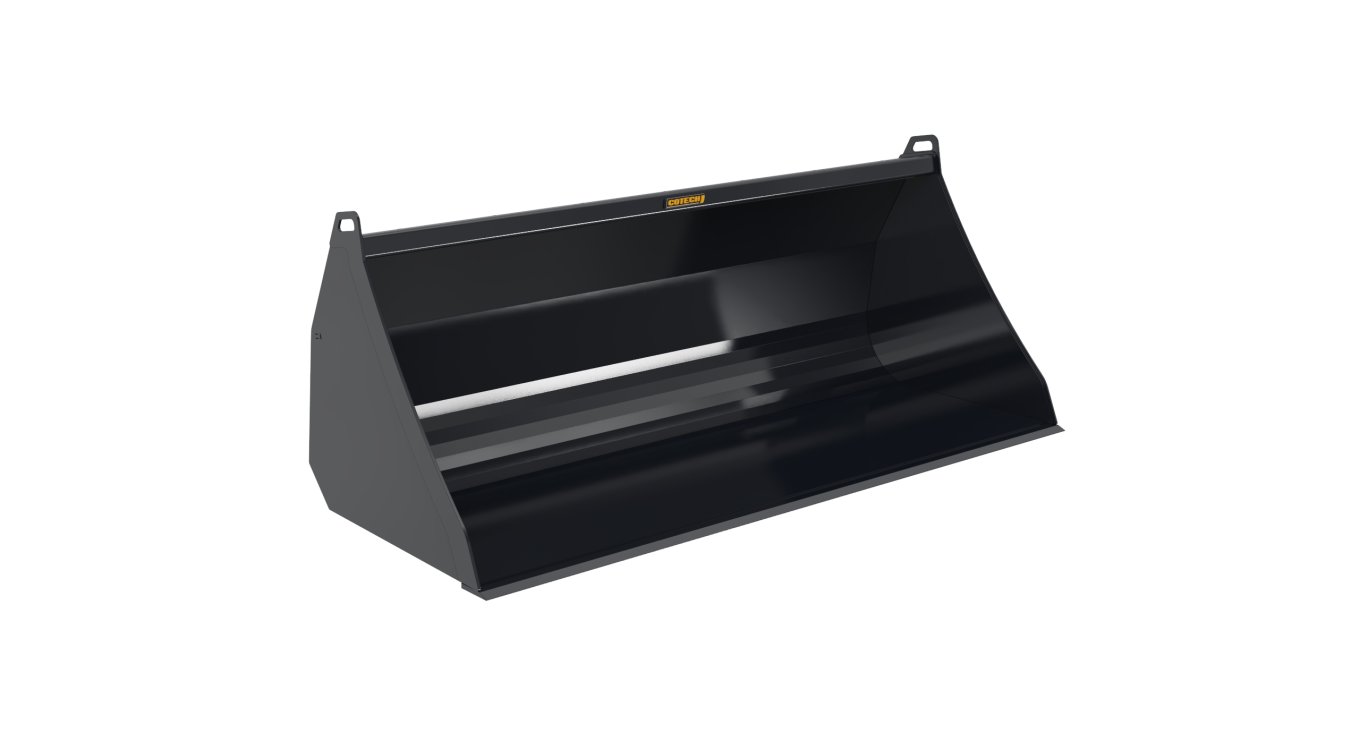

Designed for agricultural operations and ideal for handling gravel, silage, sawdust, peat moss, sand and snow. Thanks to its grapple, you won't drop anything!
Your bucket is a key attachment to all of your work and diretly linked with your productivity on the farm. These versatile buckets are designed for medium-duty work.
They are built with a 1/4" steel base and 3/8" thick steel side plates. The 3/8" side reinforcements run the full height of the bucket and wrap around the top section to maximize rigidity and strength. The cutting edge, made of carbon steel, measures 6" wide by 3/4" thick.
The curved double bottom is reinforced underneath with 3/8" x 3" steel supports. Wear parts are made from Hardox® 450, reducing weight while increasing durability.
The hydraulic cylinders to active the grapple are 2.5" x 10" to secure the material during transportation.
65-130 HP
| BGG |
|||||
| Models | Capacity | Width | Height | Number of Tines | Weight |
| BGG-72 | 0.85 yd3 | 72" | 29.5" | 4 | 992 lbs |
| BGG-84 | 1 yd3 | 84" | 29.5" | 5 | 1,097 lbs |
| BGG-96 | 1.13 yd3 | 96" | 29.5" | 6 | 1,200 lbs |
Improves material retention and operational safety.
Sold with bolts and mounting plate included.
Reduces wear and tear on the bucket. Easily interchangeable.
