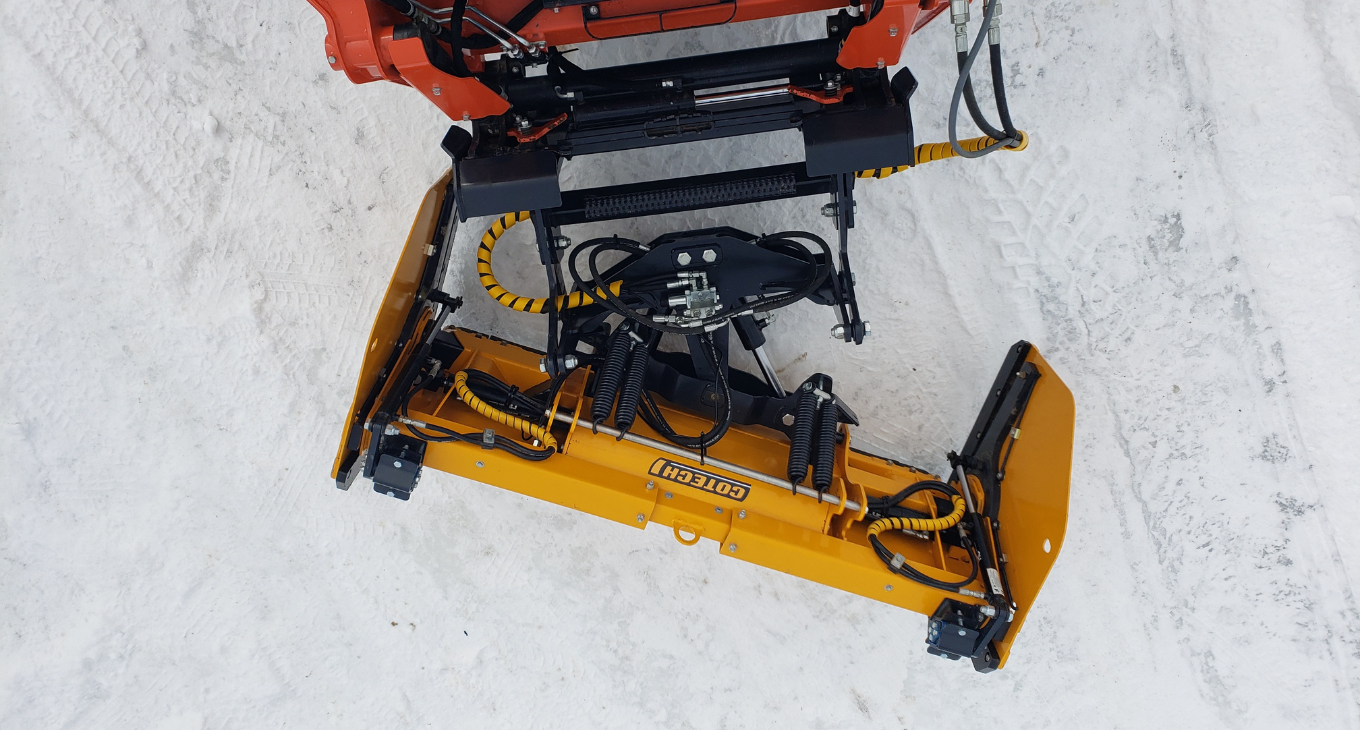

PPCR-DP-SKST for skid steer

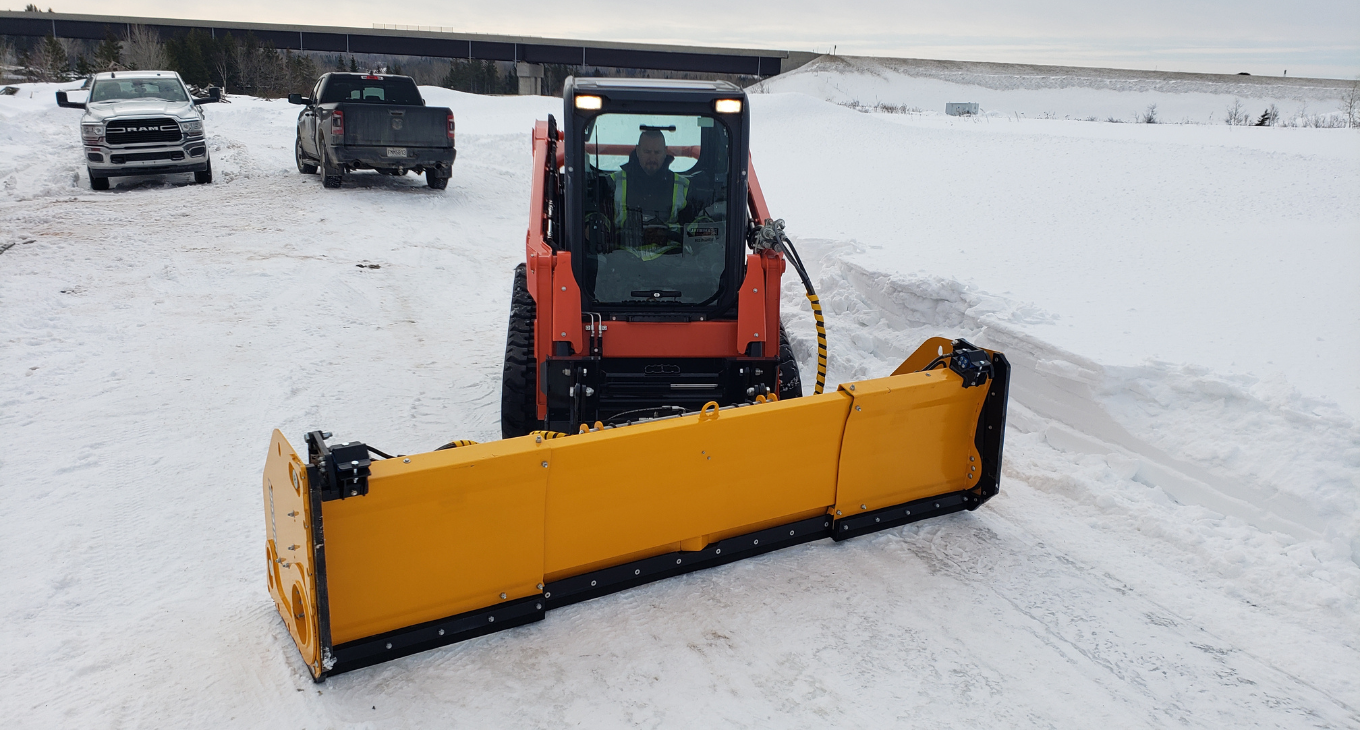

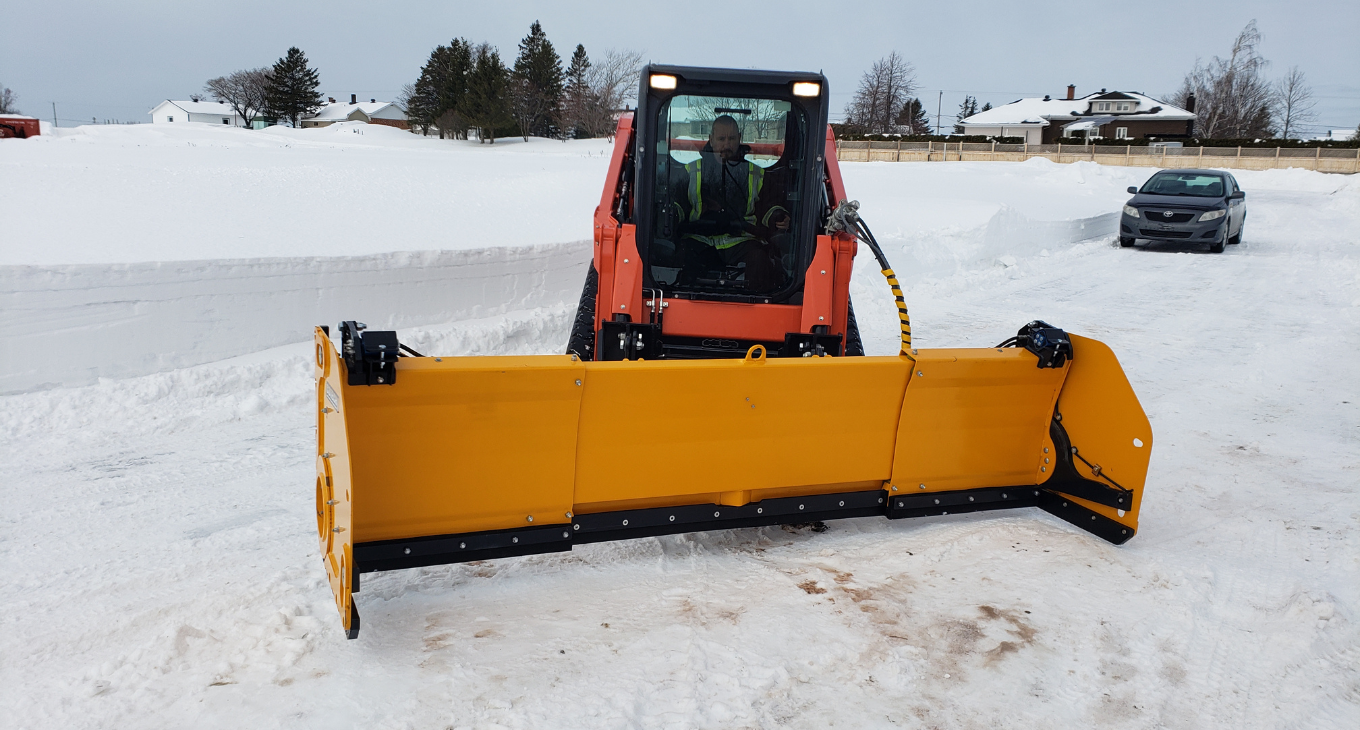

The PPCR-DP-SKST are our newest models available for skid steers. The central hydraulic pivot system allows for pushing and clearing snow at a 30º angle on each side (60º total). In push mode, the pivot system facilitates tight turns of the skid steer and provides more versatility during operations. The innovative SKST attachment integrates the mechanical floating position, ground level and trip system into a single mechanism. The parallel lifting system provides unmatched visibility and precision, increasing productivity. The extension slides are supported with 3 points of contact, resulting in a seamless cleared pass.

Recommended equipment

5000 lbs - 13000 lbs

50-115 HP

Specifications

PPCR-DP-SKST & PPCR-HD-DP-SKST
ModelsRecommended Skid SteerWidth ClosedWidth OpenHeightPush Mode DepthPull Mode DepthWeight

PPCR30610-DP-SKST

50 to 65 hp
5,000 to 8,000 lbs

77"

125"

30"

22"

21"

1,650 lbs

PPCR30712-DP-SKST

65 to 75 hp
5,000 to 8,000 lbs

89"

149"

30"

22"

21"

1,805 lbs

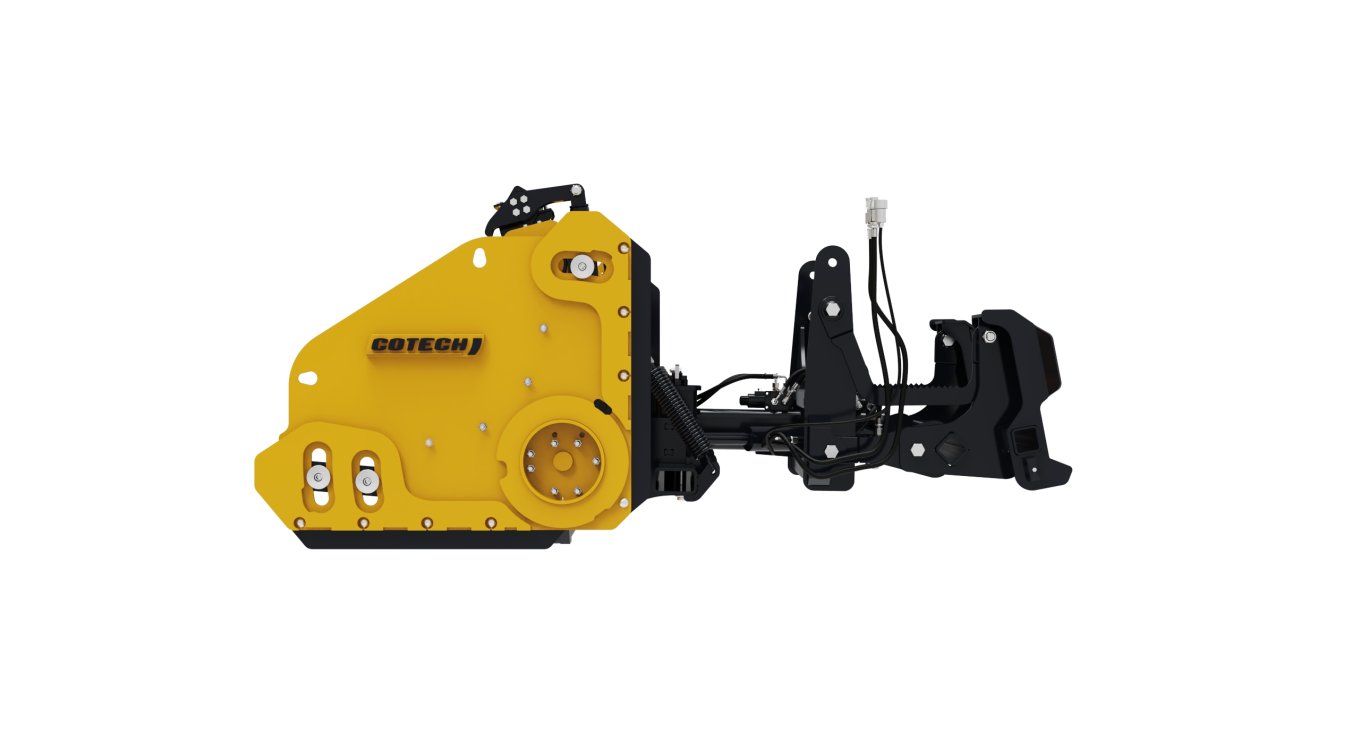

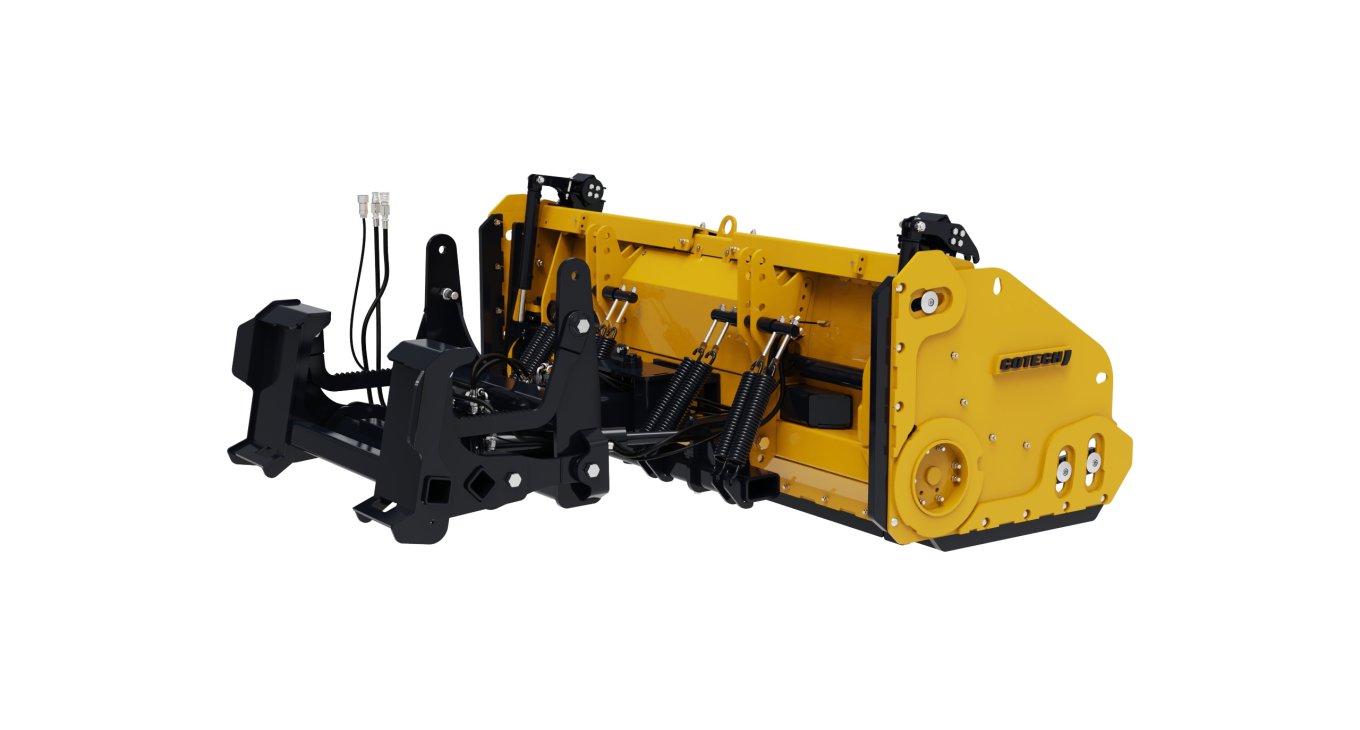

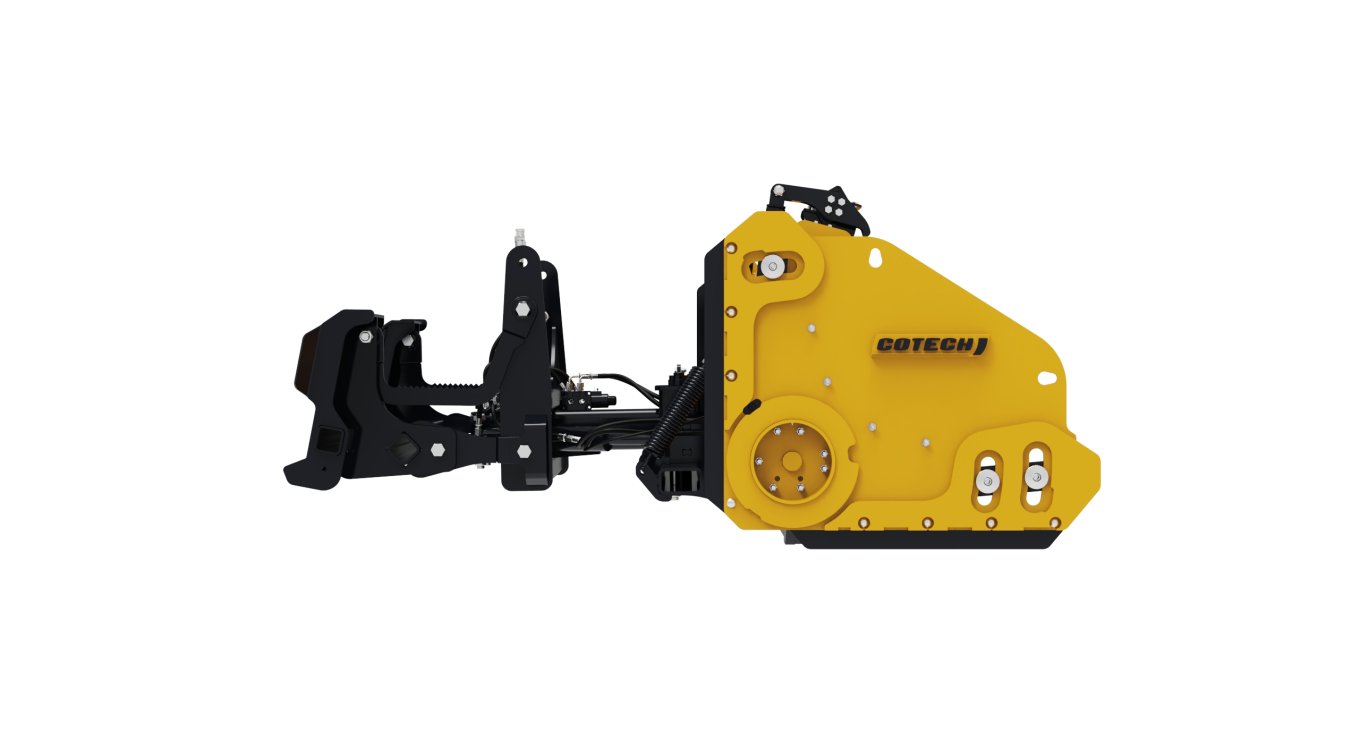

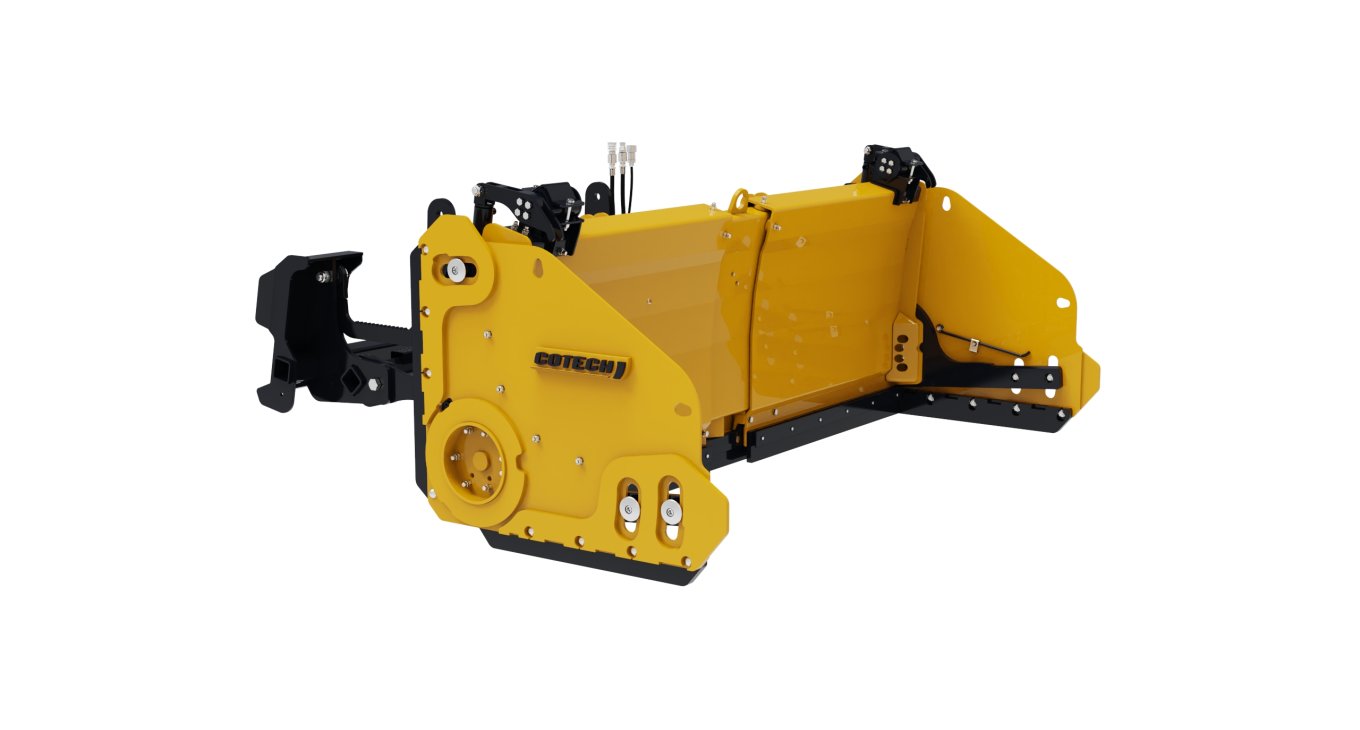

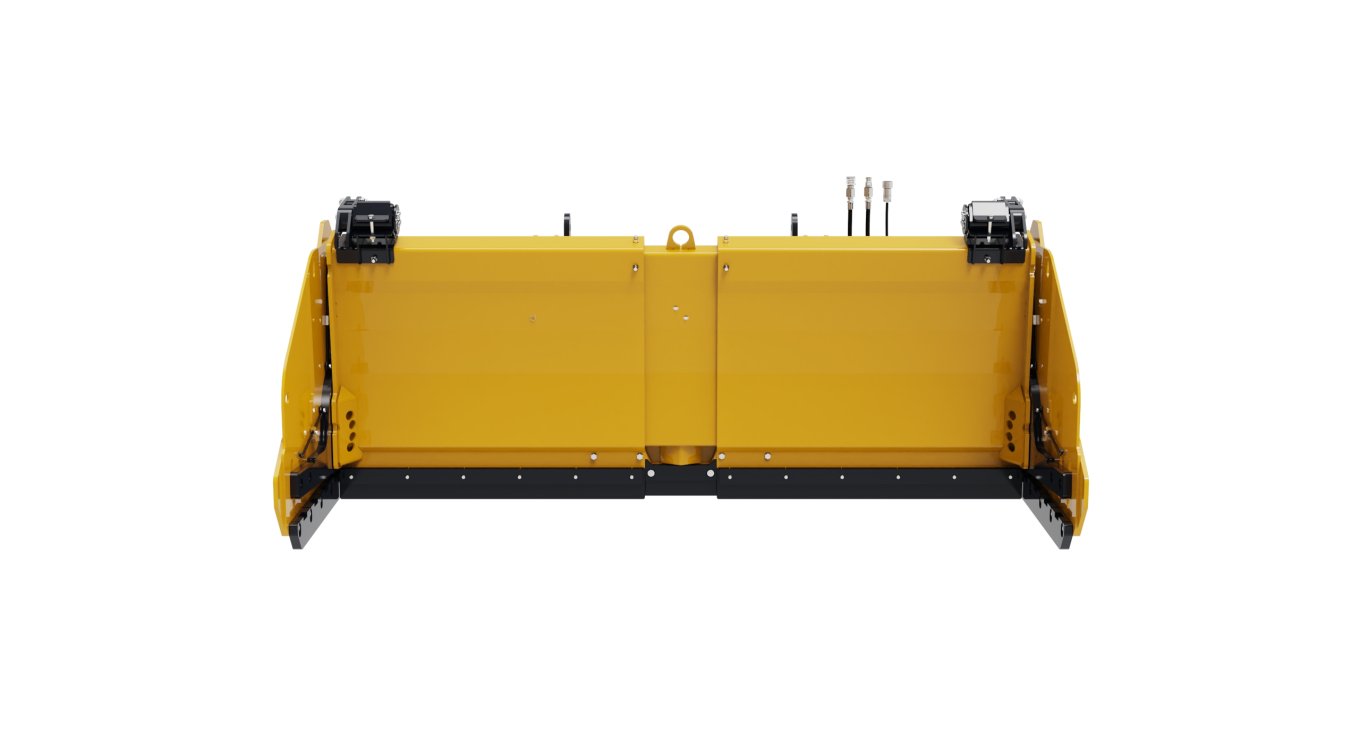

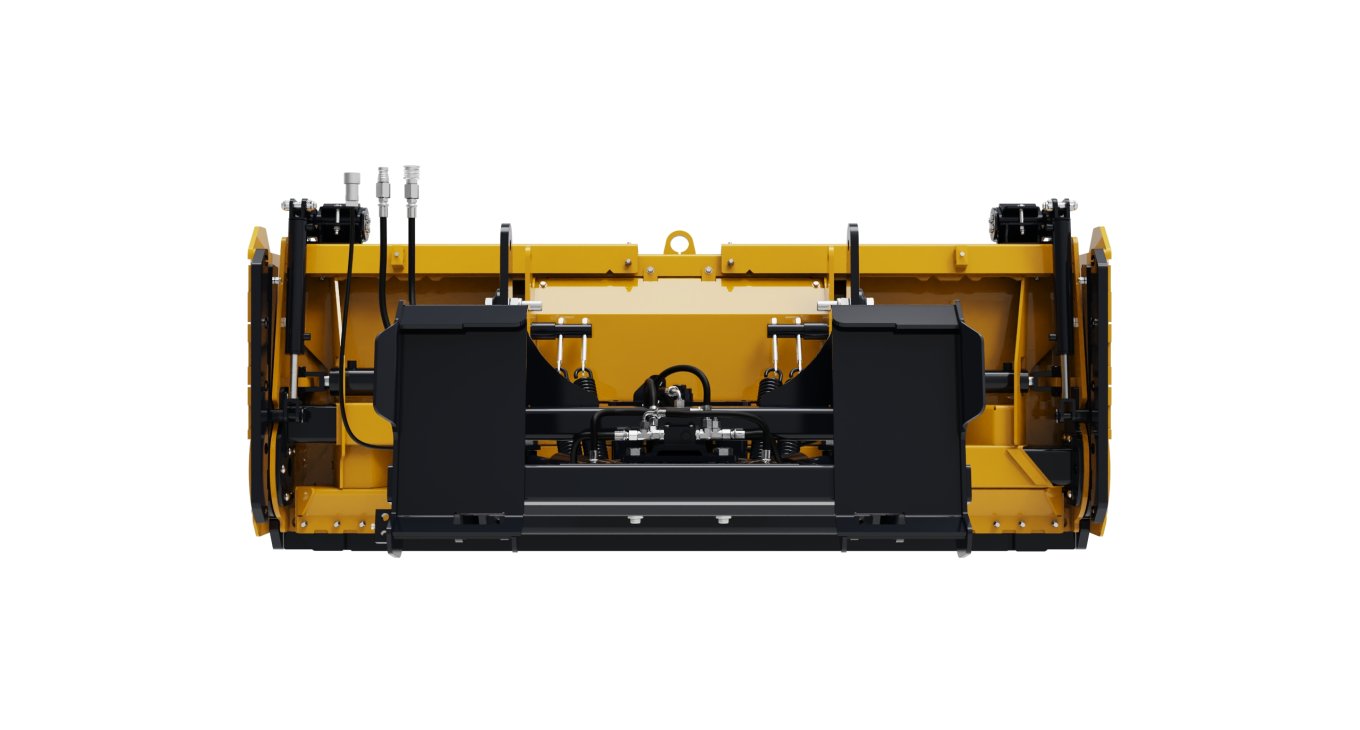

PPCR34712-HD-DP-SKST

75 to 100 hp
8,000 to 11,000 lbs

90"

150"

34"

28.5"

25"

2,250 lbs

PPCR34813-HD-DP-SKST

100 to 115 hp
10,000 to 13,000 lbs

99"

159"

34"

28.5"

25"

2,550 lbs
