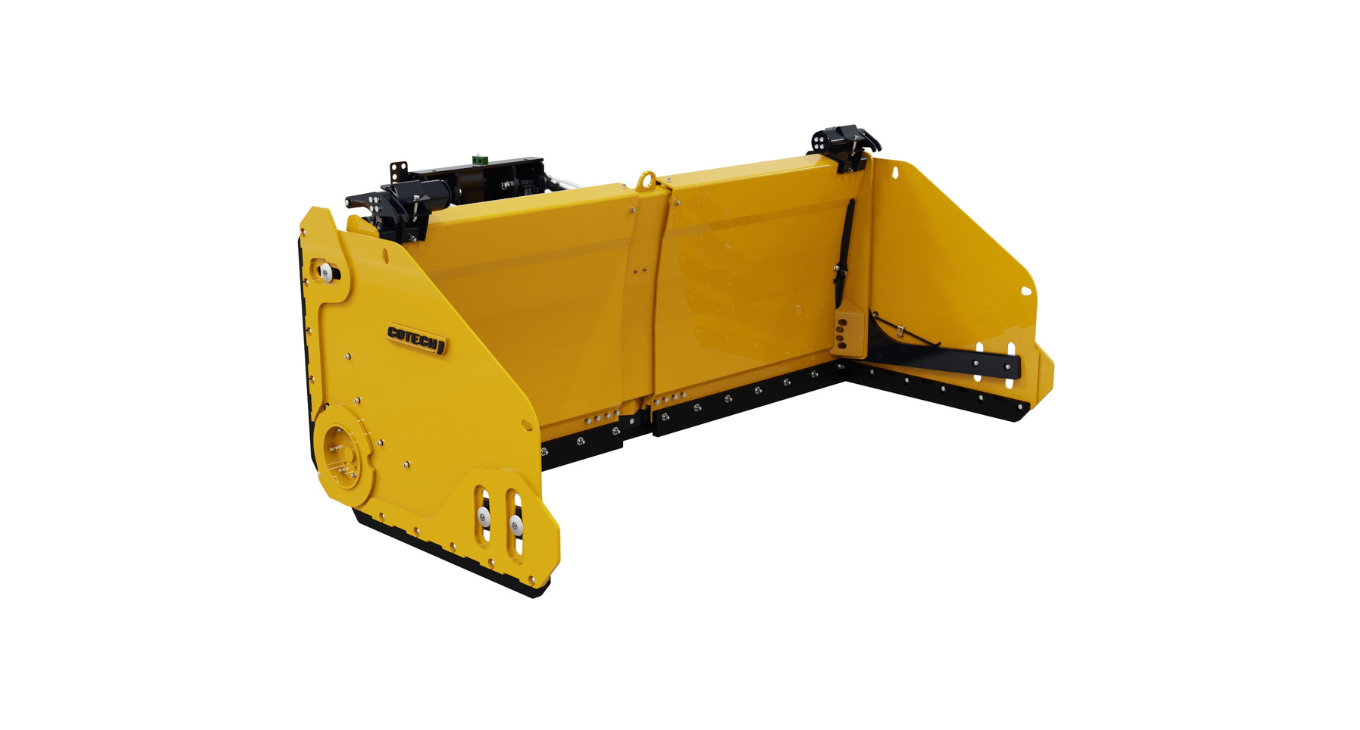

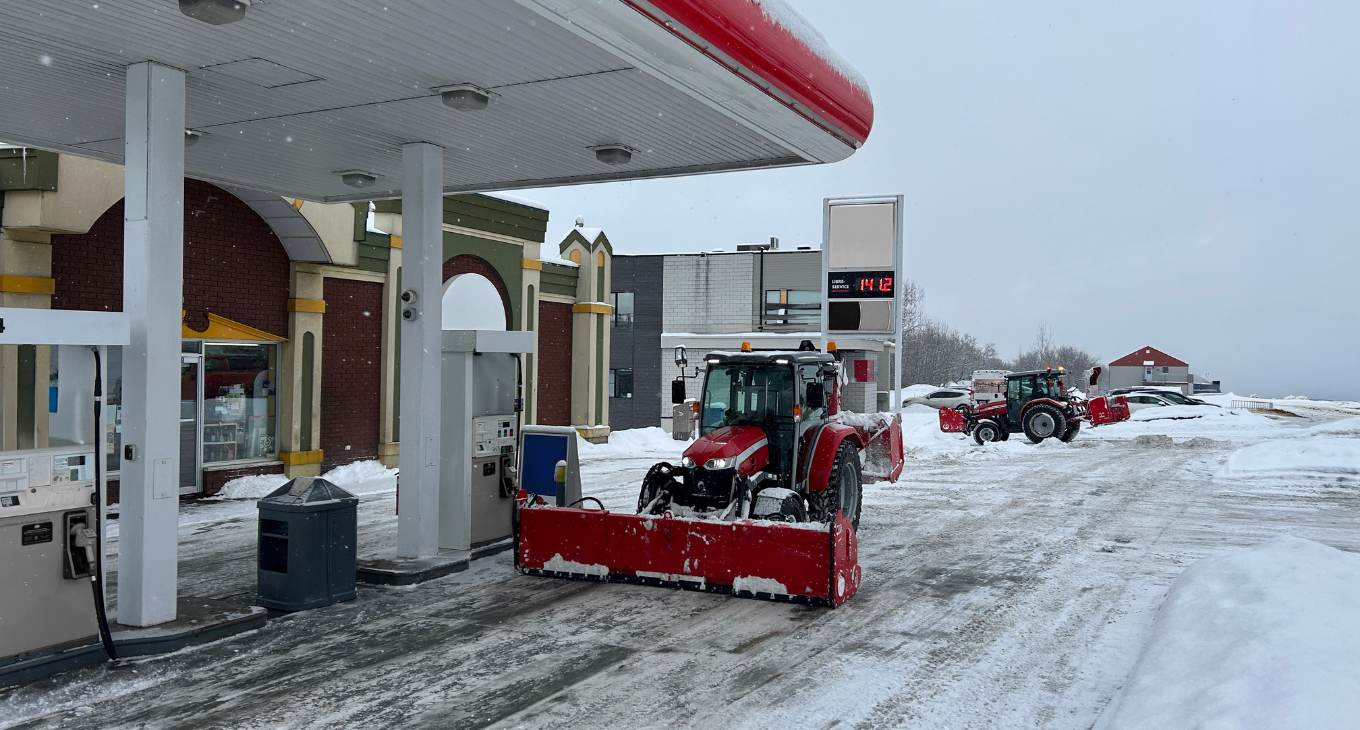

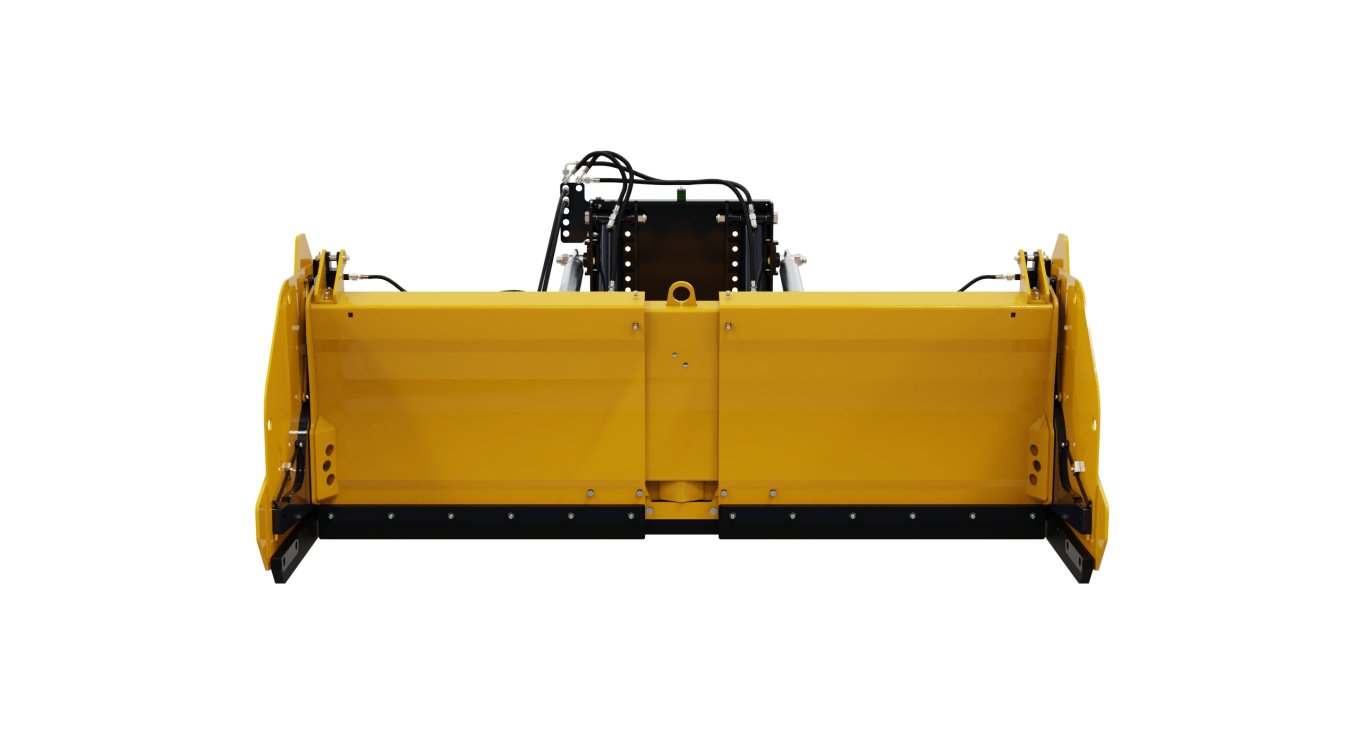

Extendable push-pull snow plows with rotating wings, designed for residential and light commercial snow removal.

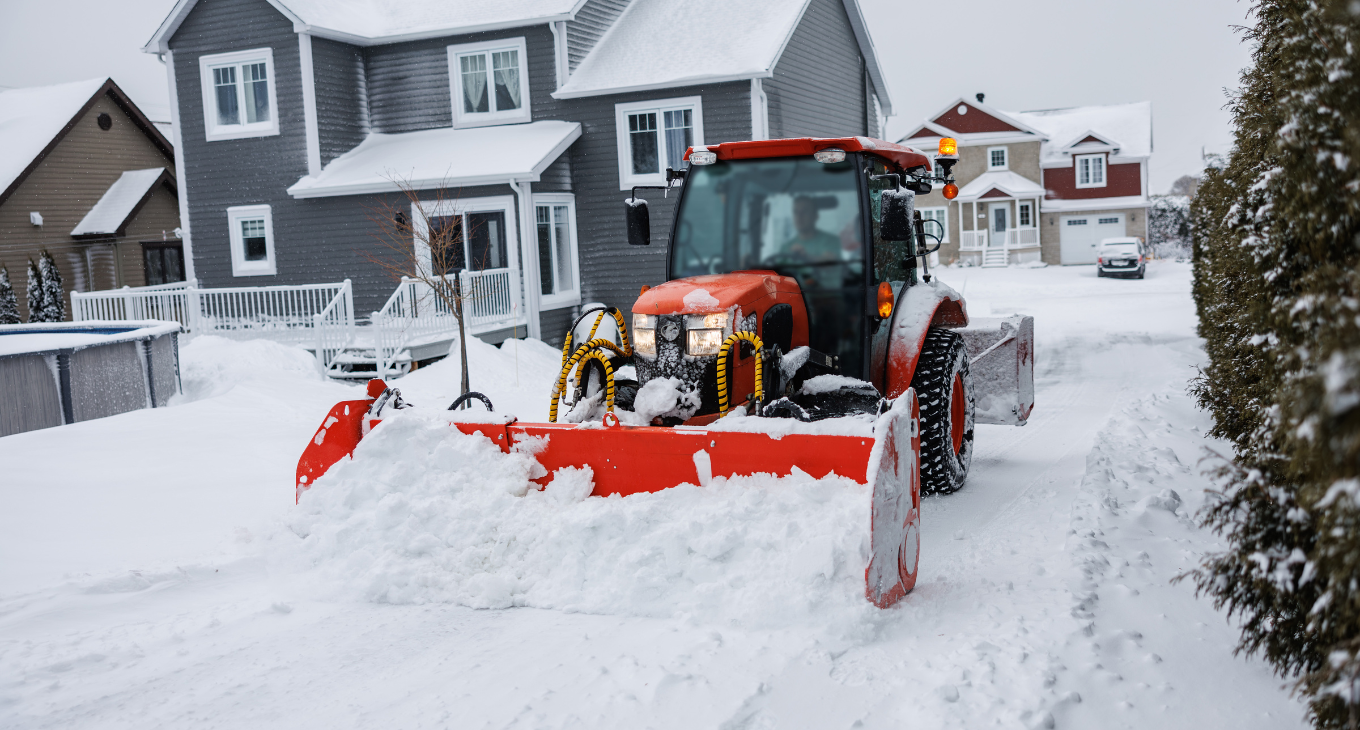

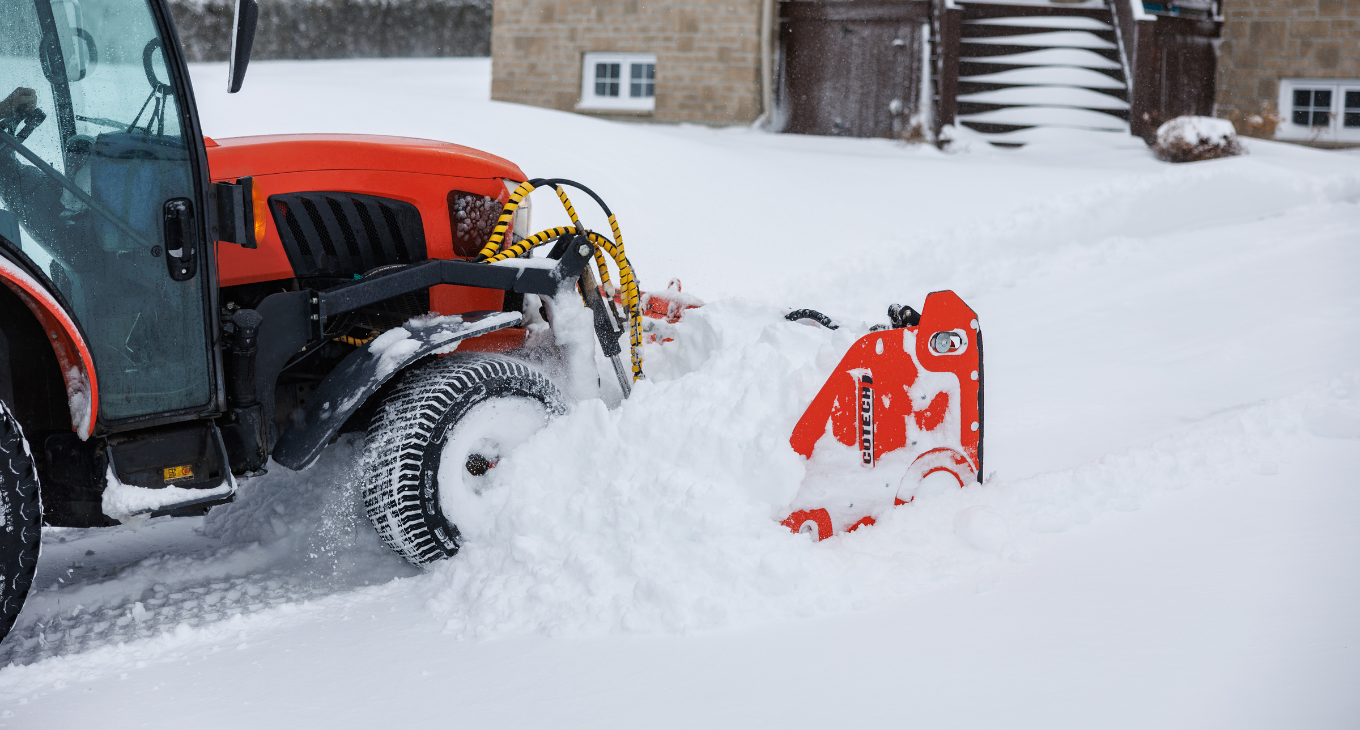

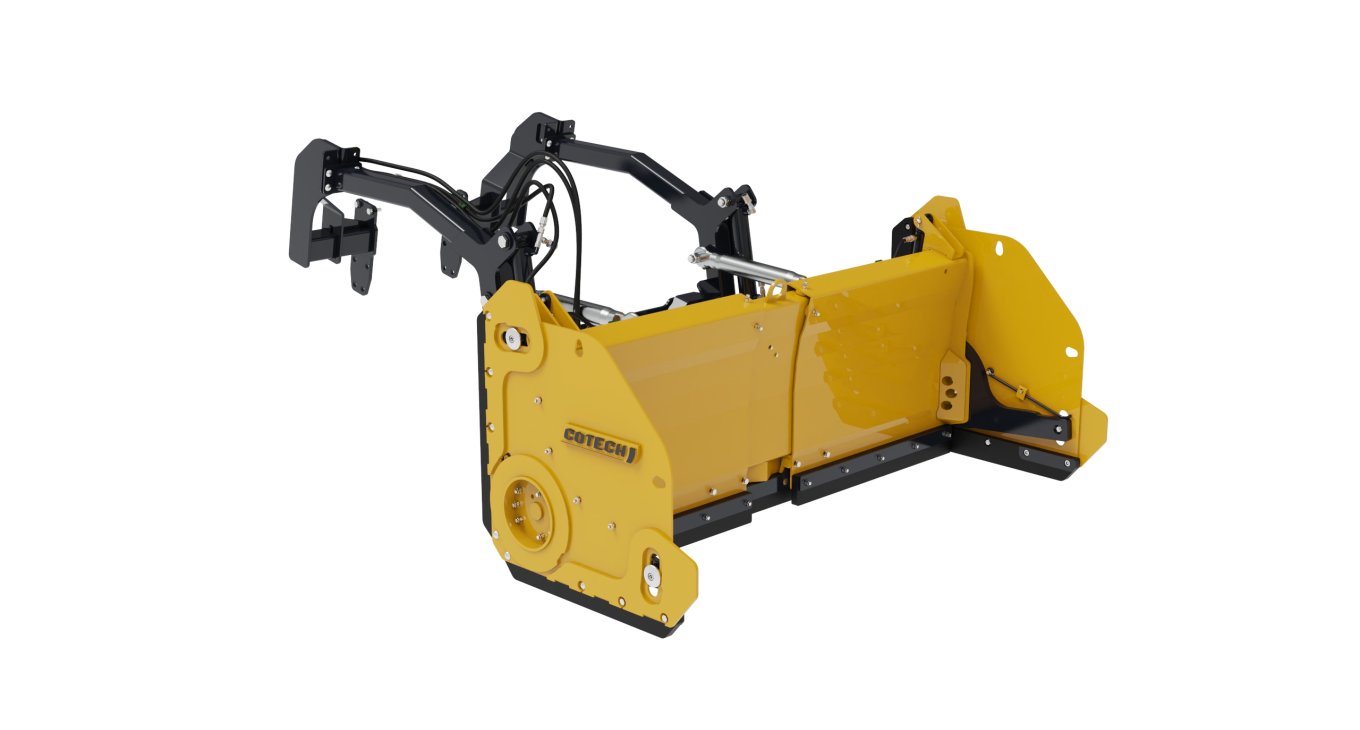

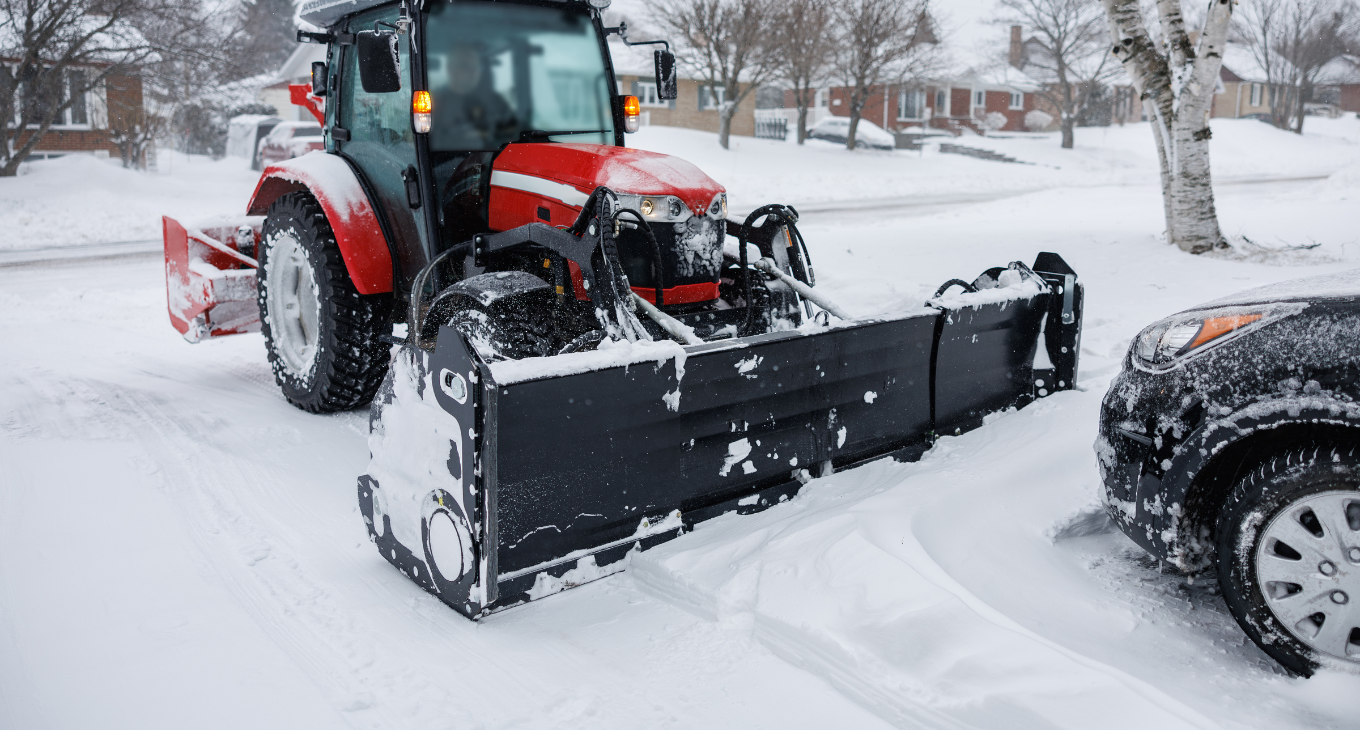

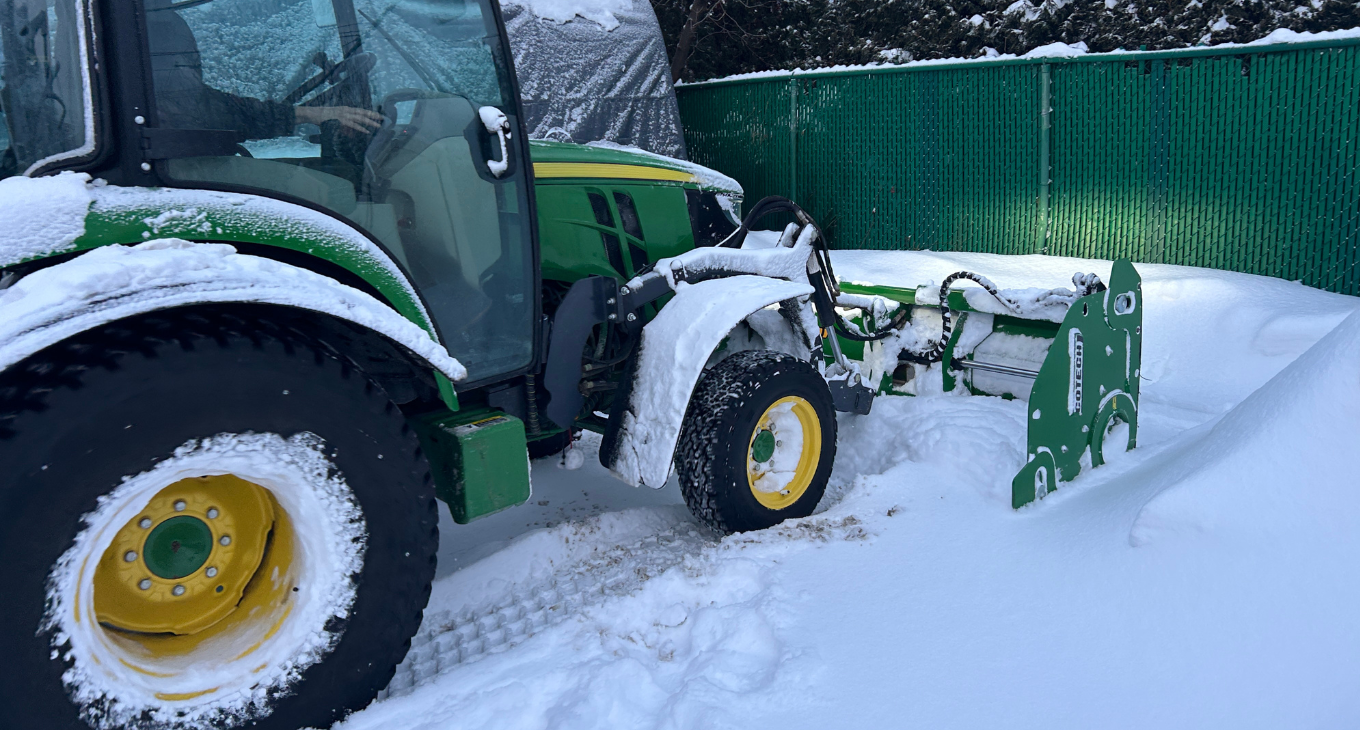

Cotech introduces the PPCR-F and PPCR-F-L models, our extendable push-pull plows with rotating wings, equipped with the F4INV parallel lifting system. Designed specifically for compact tractors up to 6,000 lb, these attachments are ideal for handling large volumes of dense snow. Thanks to the parallel lifting system, they deliver increased efficiency and faster execution, improving overall operational flow and profitability.
The mechanical constant pressure system allows the weight of the plow to do the work. All hydraulic functions are integrated directly into the tractor’s joystick, simplifying operation and reducing the operator learning curve.

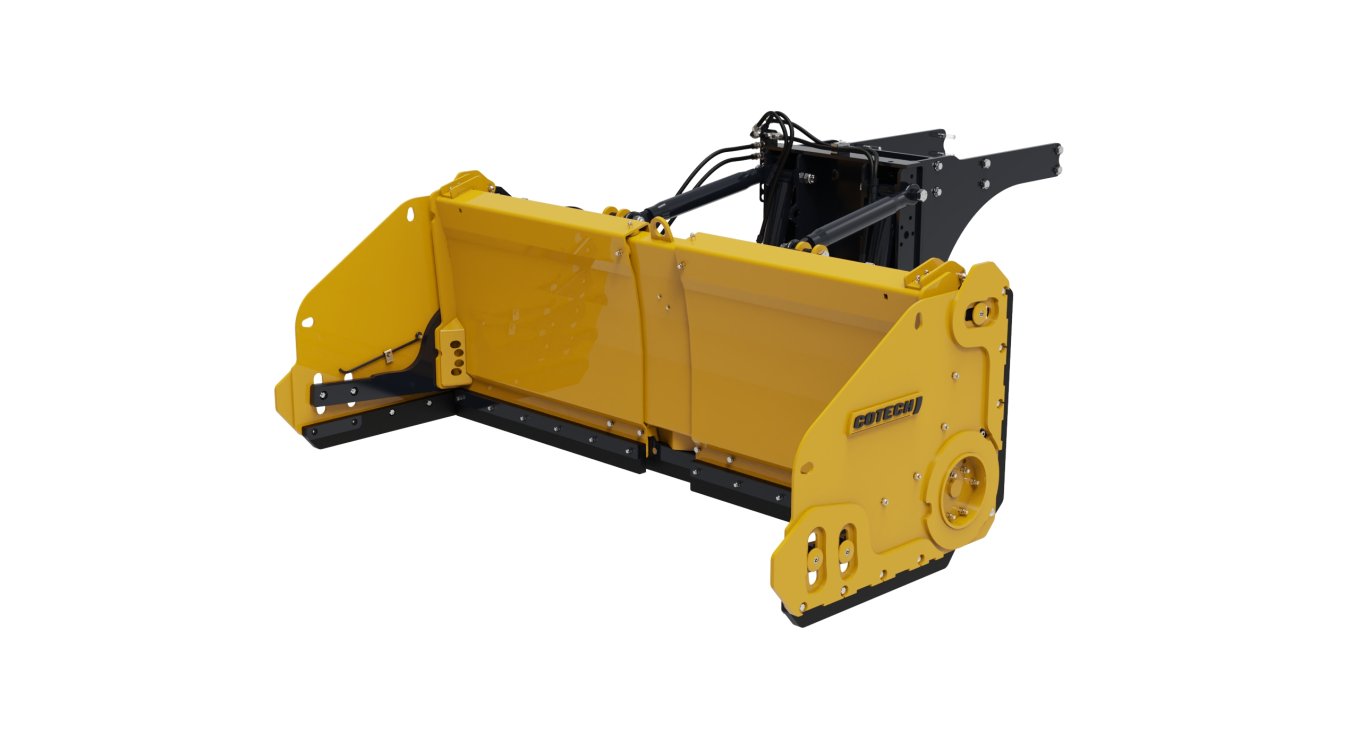

The F4INV lifting system can be bolted directly to the tractor frame (PPCR-F) or to the front loader arm mounts (PPCR-F-L).
Three cutting edges are available : Rubber, UHMW & Steel (only availble with trip system).
45-65 HP
| PPCR-F & PPCR-F-L | |||||||||
| Models | Recommended Tractor | Width Closed | Width Open | Height | Push Mode Depth | Pull Mode Depth | Weight | ||
| PPCR30610-F PPCR30610-F-L |
45 to 65 hp 4,000 to 6,000 lbs |
77" | 125" | 30" | 22" | 21" | 1,275 lbs | ||
| PPCR30712-F PPCR30712-F-L |
45 to 65 hp 4,000 to 6,000 lbs |
89" | 149" | 30" | 22" | 21" | 1,430 lbs | ||

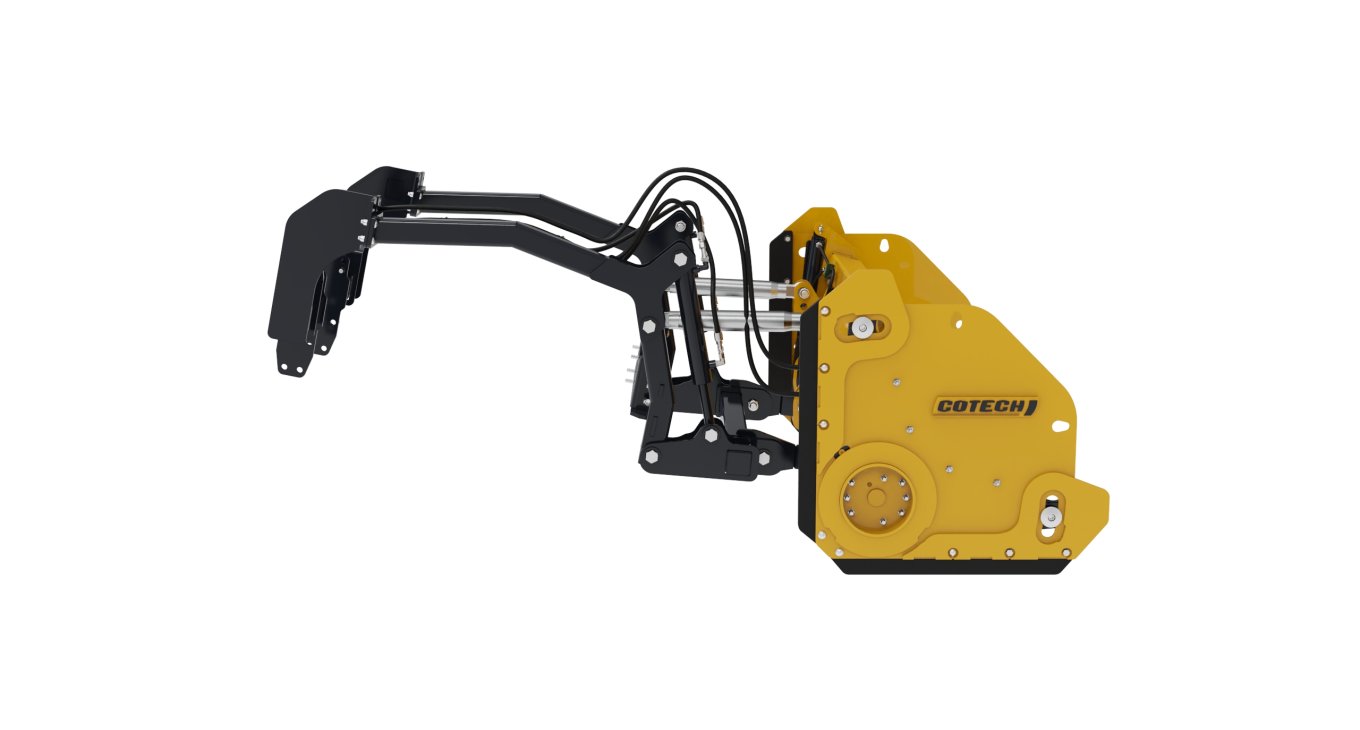

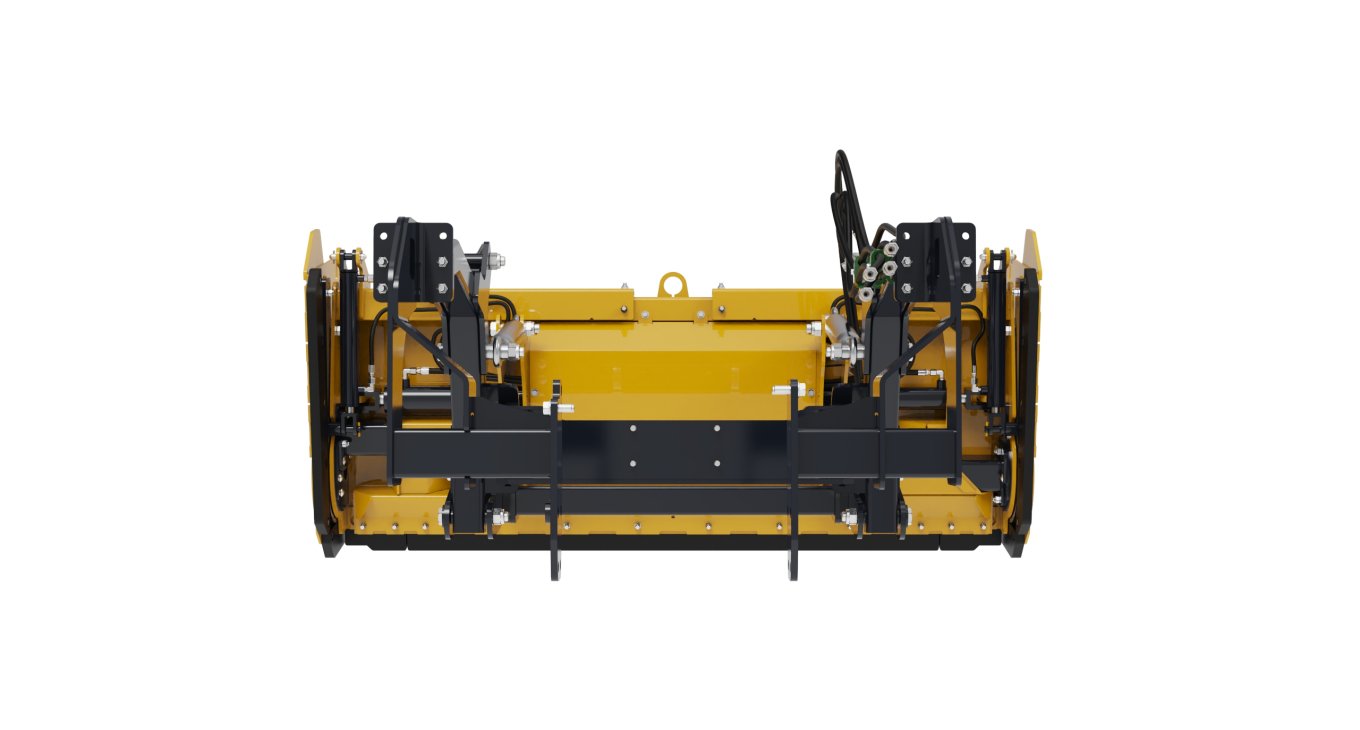

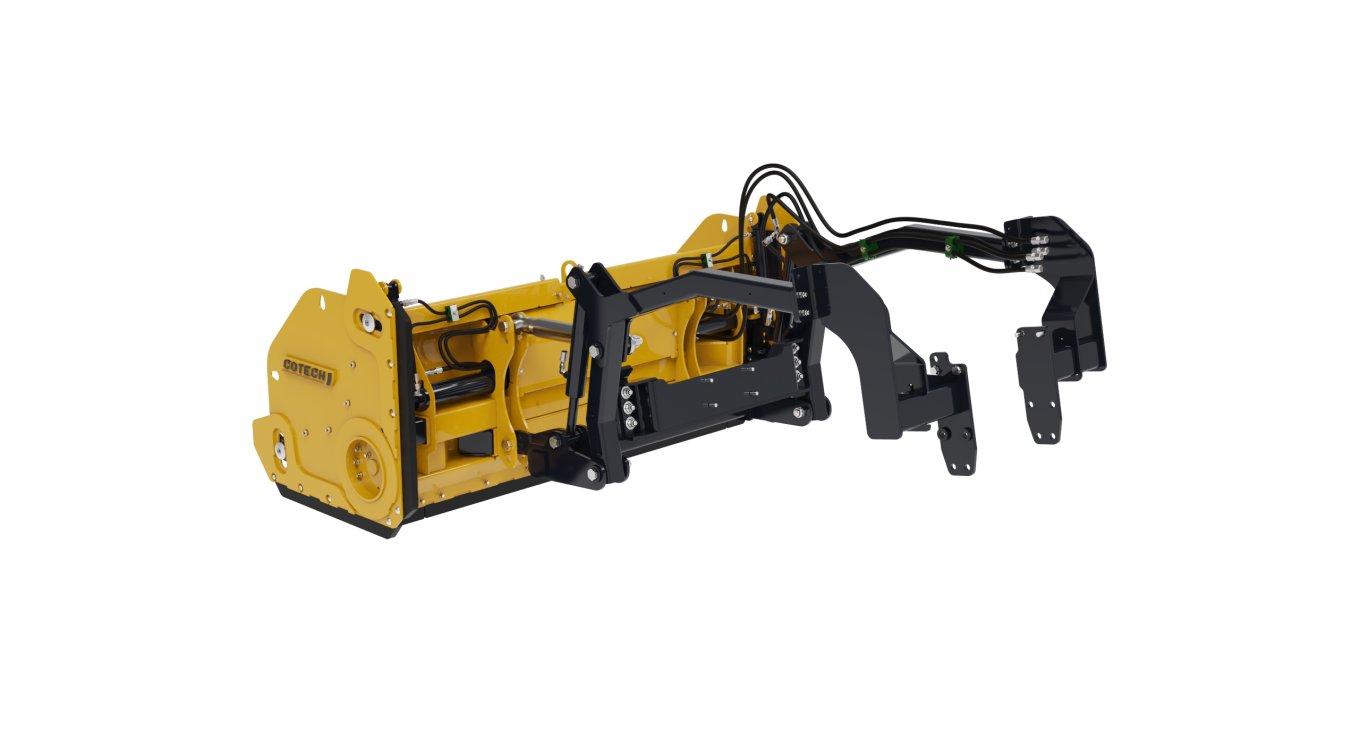

The F4INV lifting system provides superior visibility due to its compact design. The system's rigidity in transport mode enhances operator comfort as the plow stays close to the tractor's front axle. The arched steel arms do not reduce the turning radius determined by tractor manufacturers. The mechanical constant pressure leveling system is integrated into the lifting system and provides constant pressure on the snow plow for uniform cleaning.

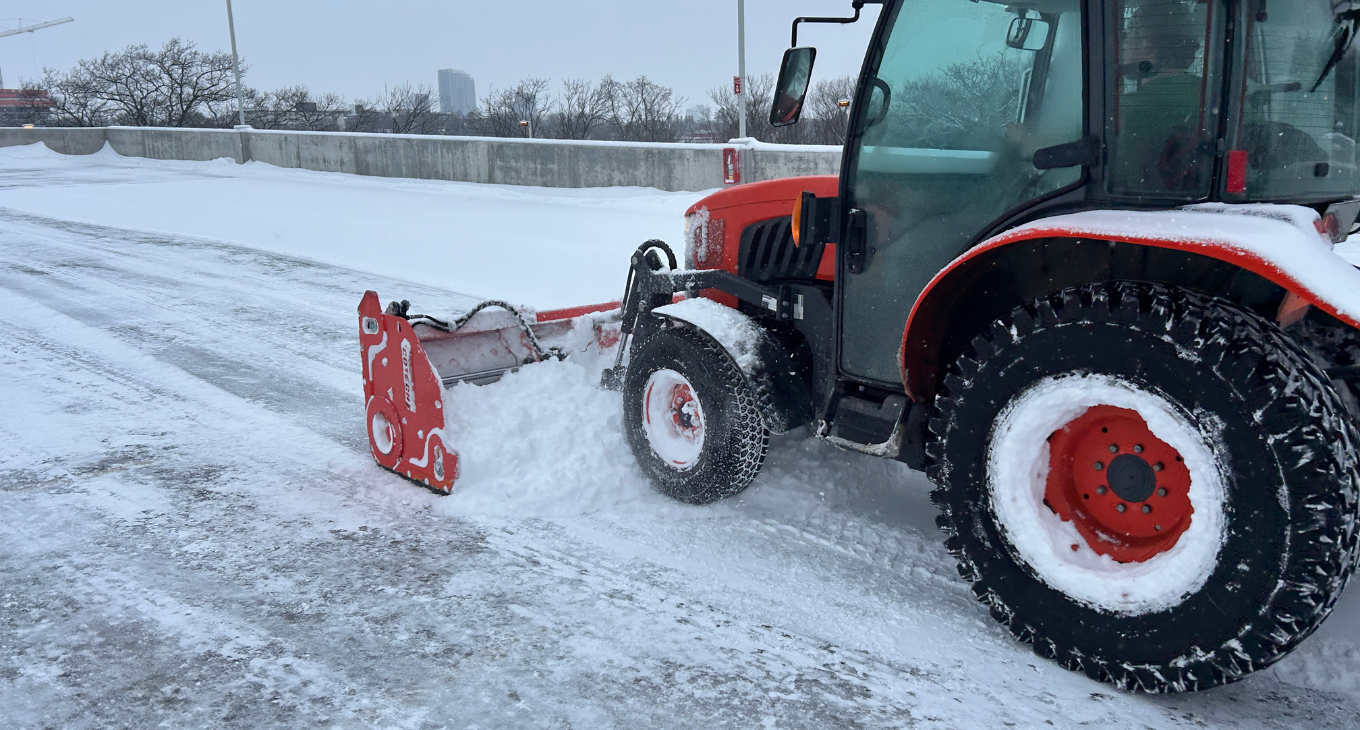

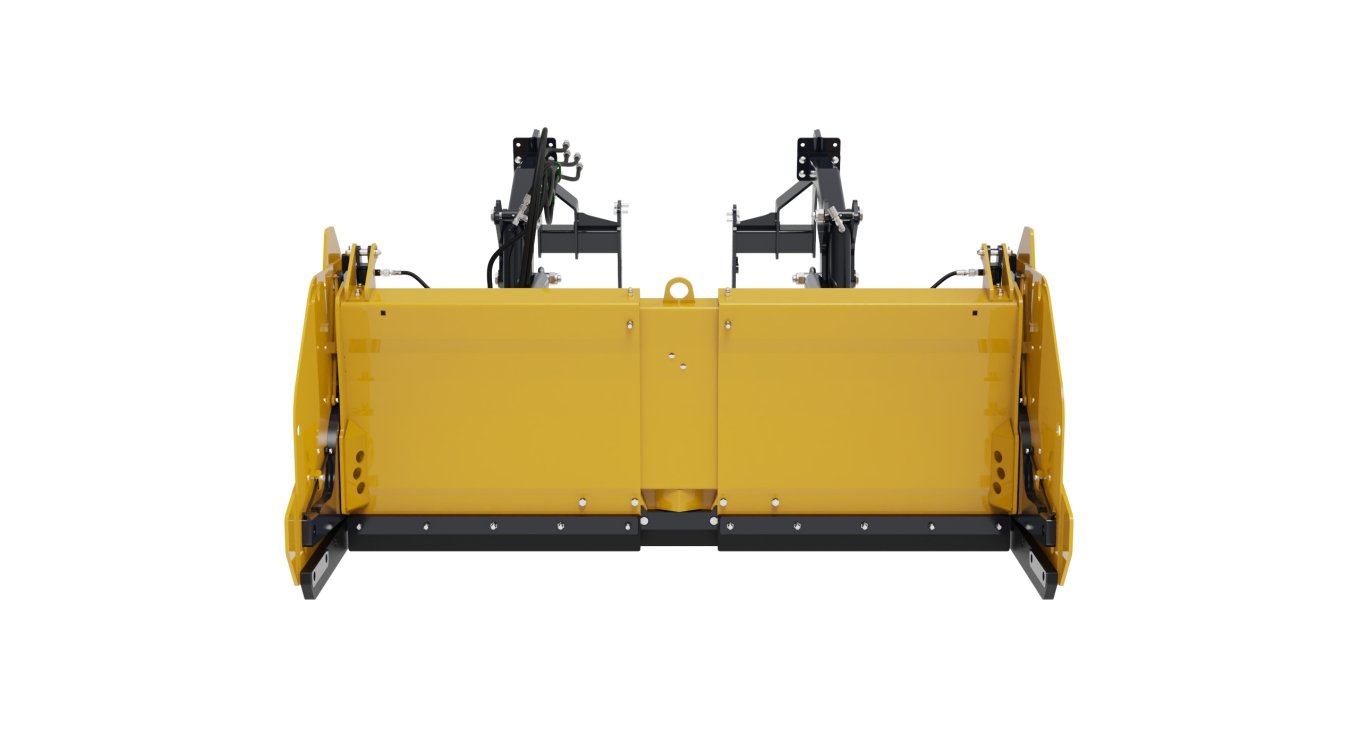

Moreover, the snow plow's extensions are supported by three points of contact, ensuring uniform cleaning quality in both push and pull modes. The quick transition of the rotating wings between push and pull modes increases productivity and versatility of operations.

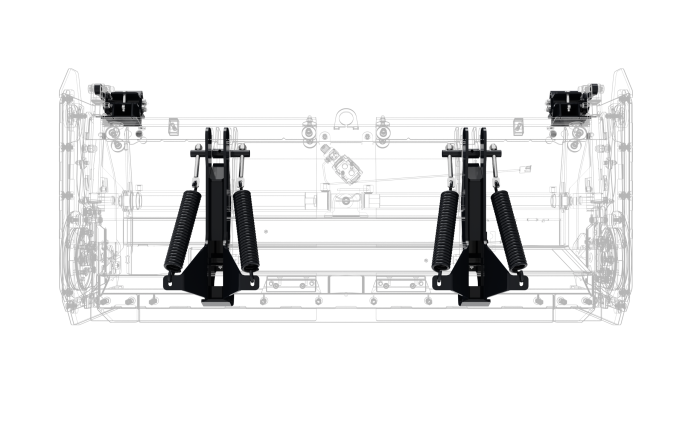

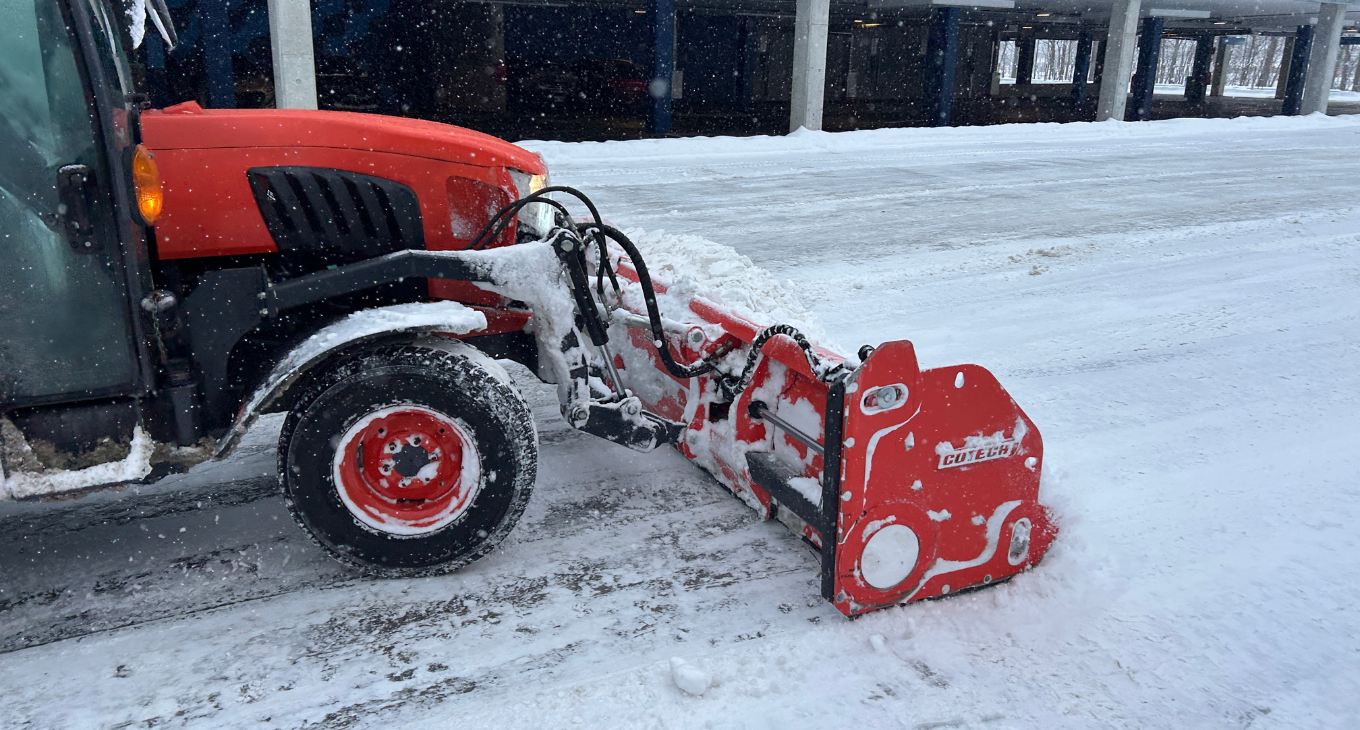

The trip system is also available on all our PPCR models. In push mode, the central section of the snow plow triggers forward to absorb the impact caused by manholes, sidewalks, and other road imperfections.
Several colors are available: yellow, gray, orange, green, blue, red, black and pink.

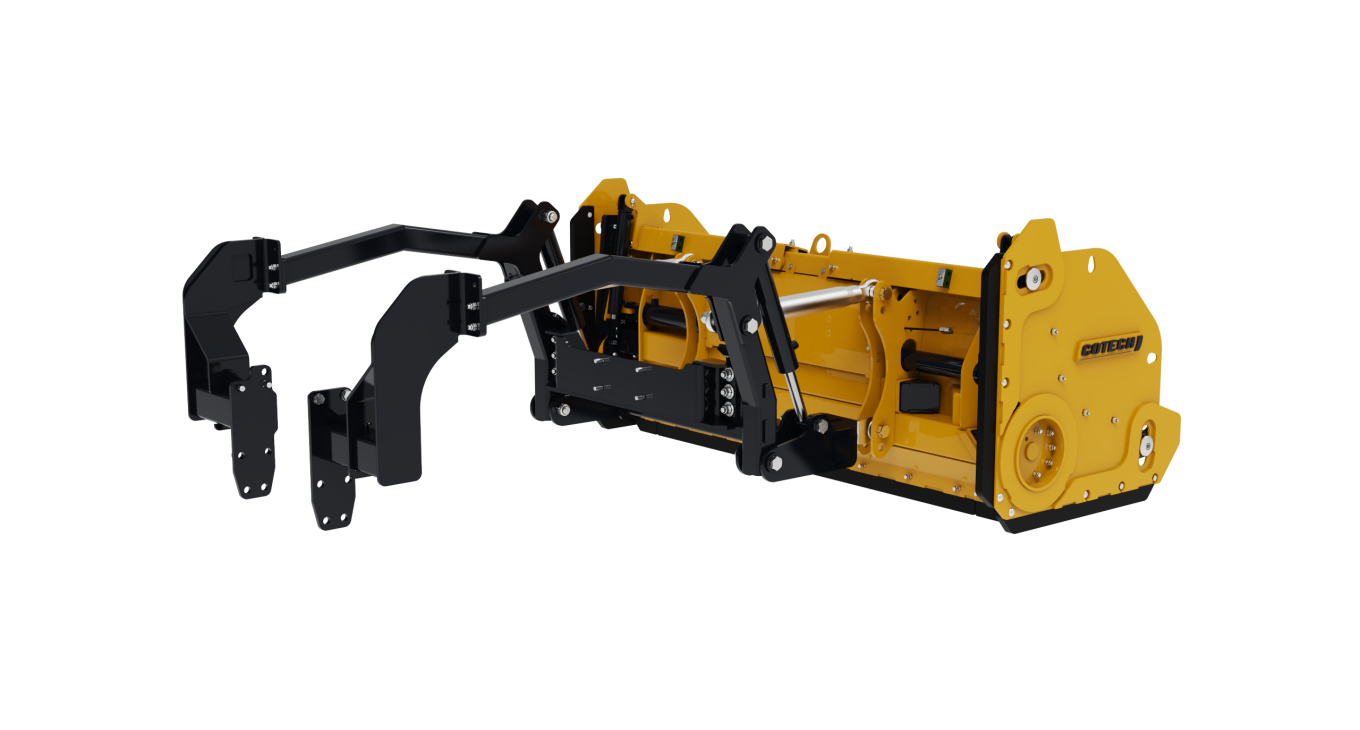

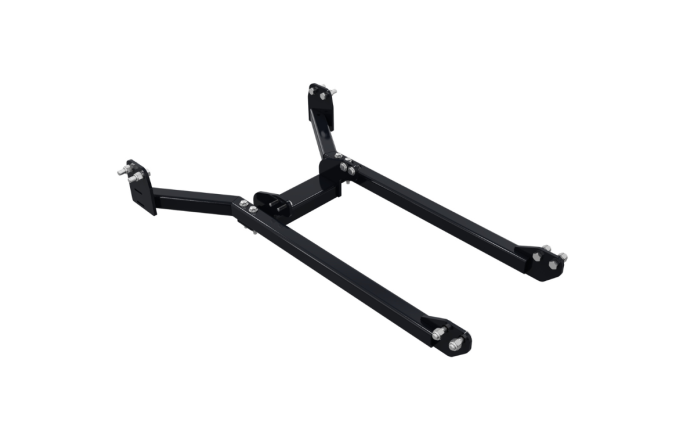

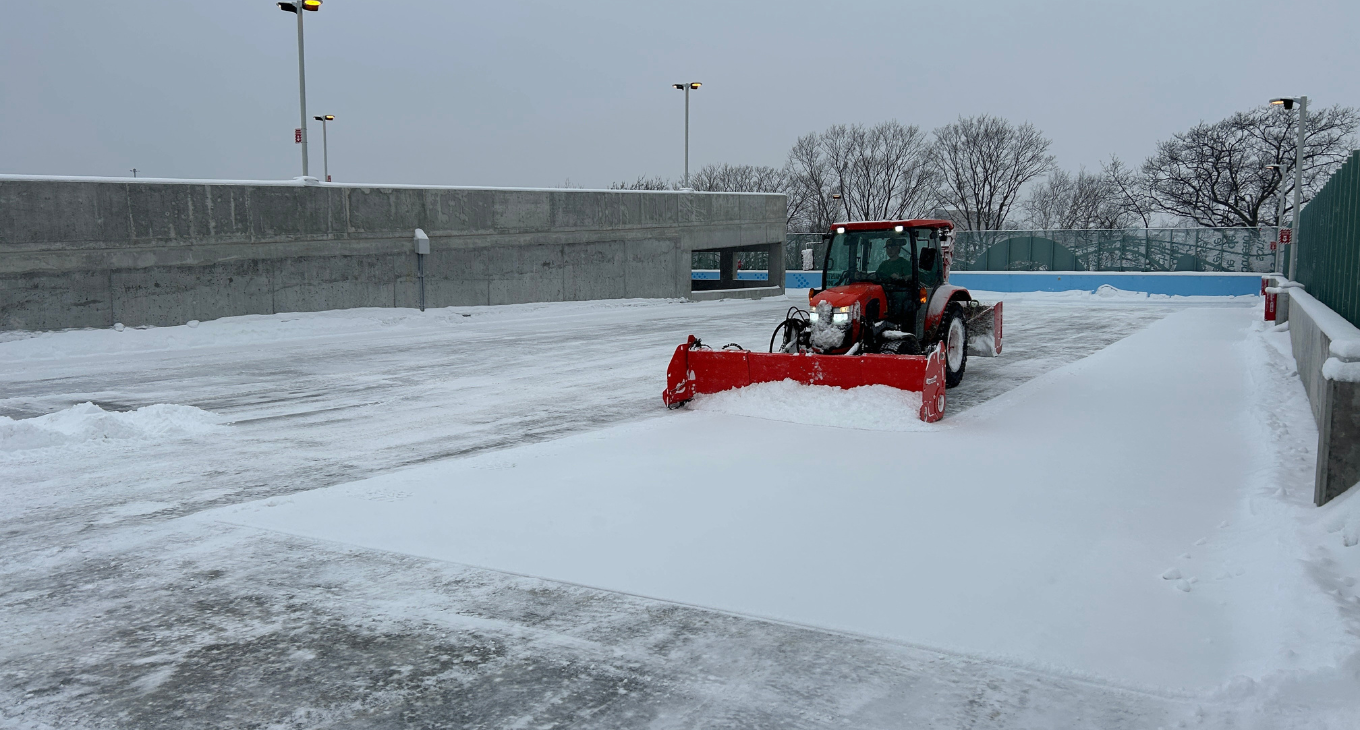

Push bar designed for Kubota L6060 tractors.
The trip system absorbs road imperfections and enhances both operator safety and comfort.
