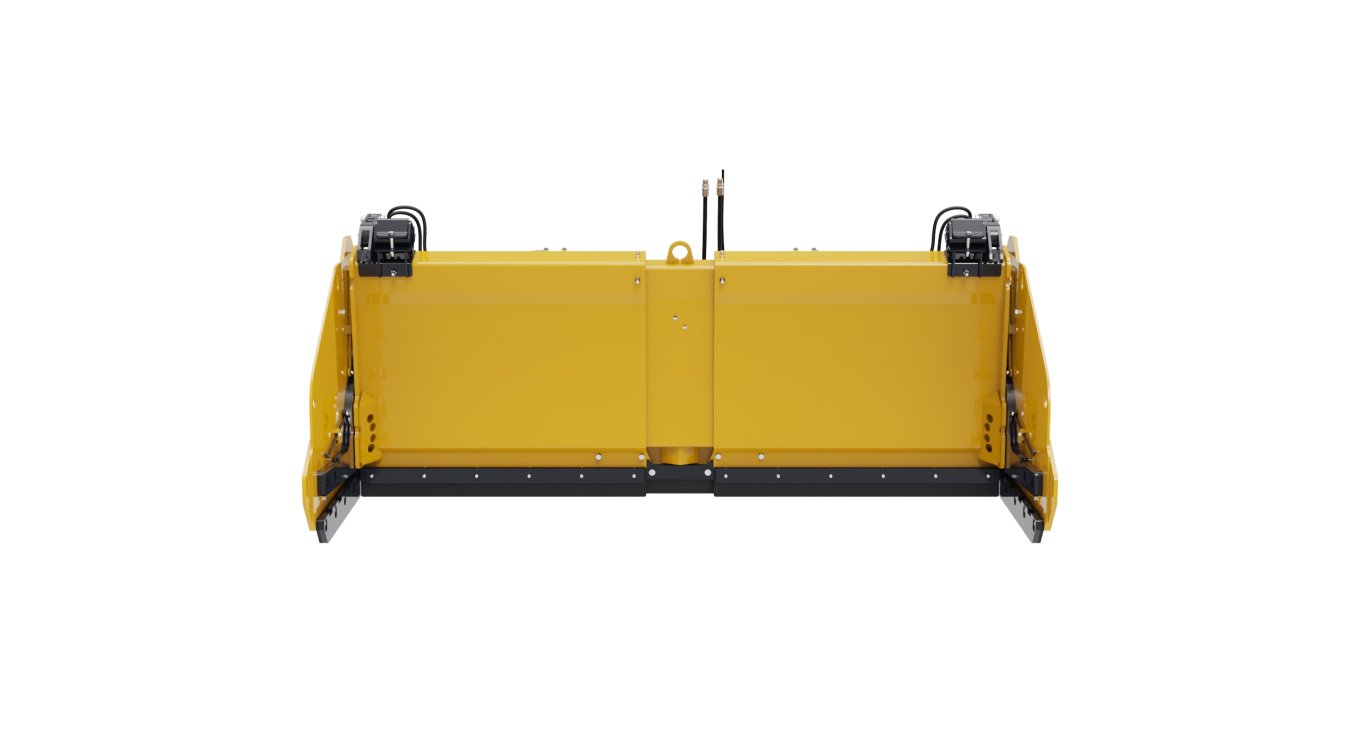

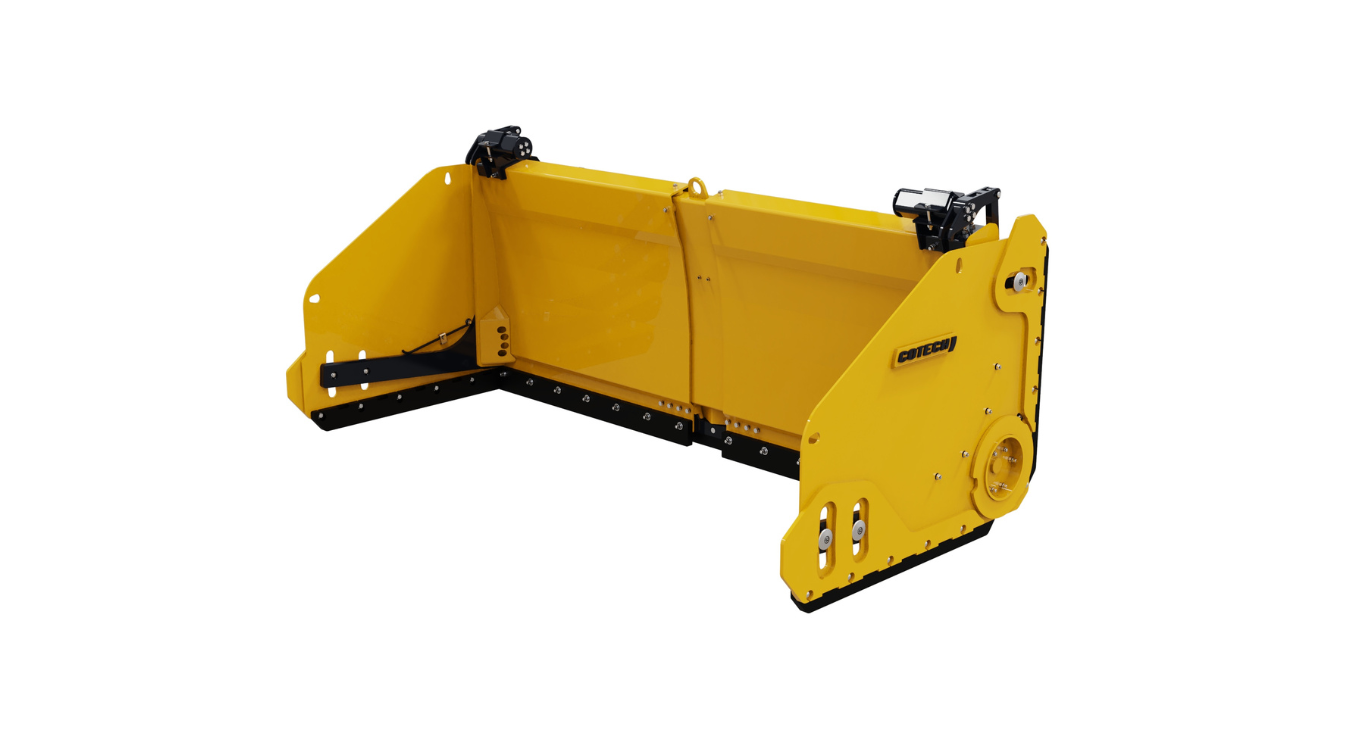

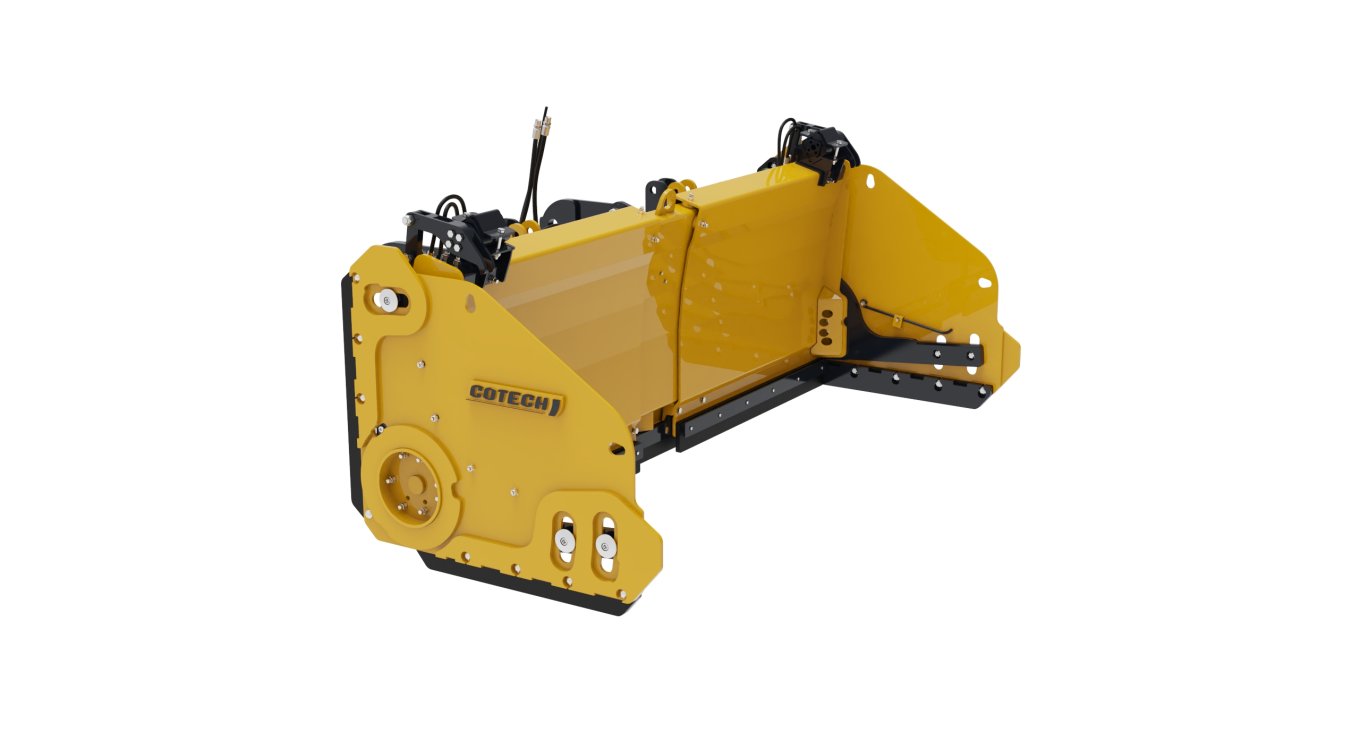

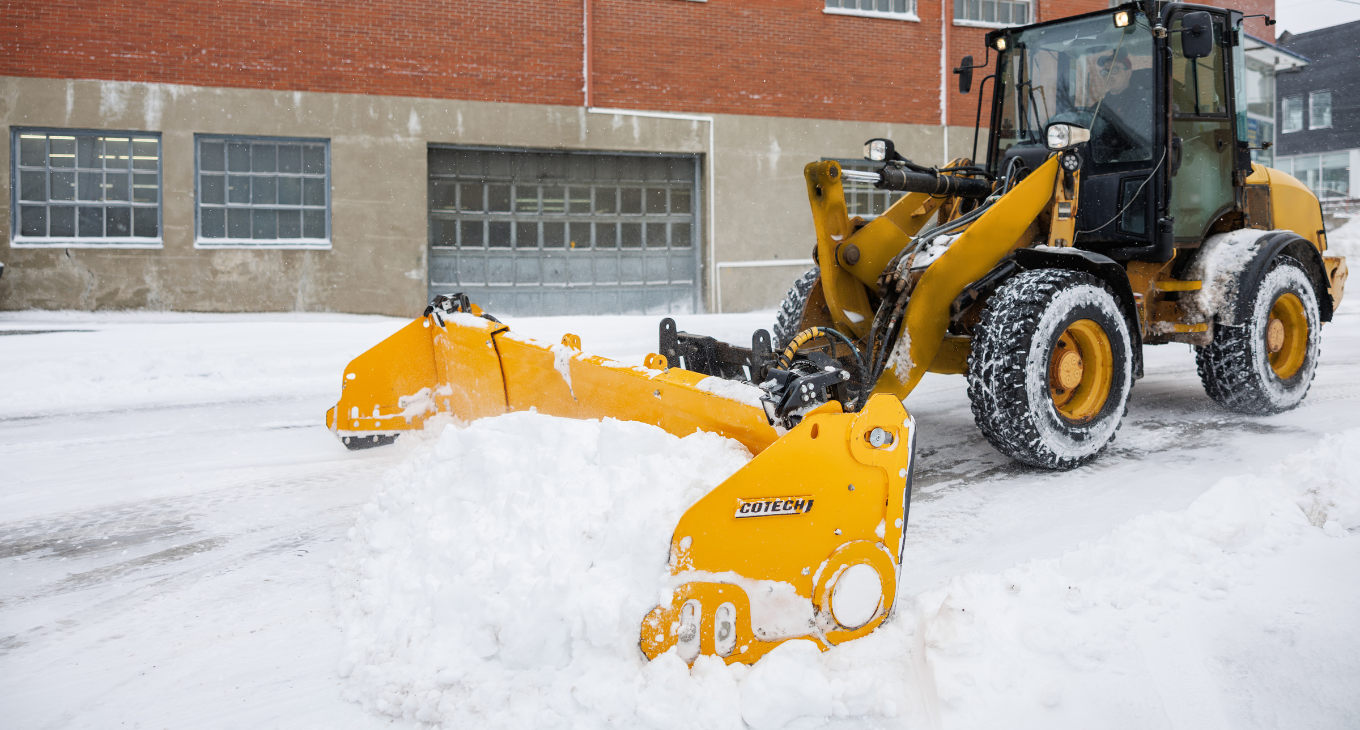

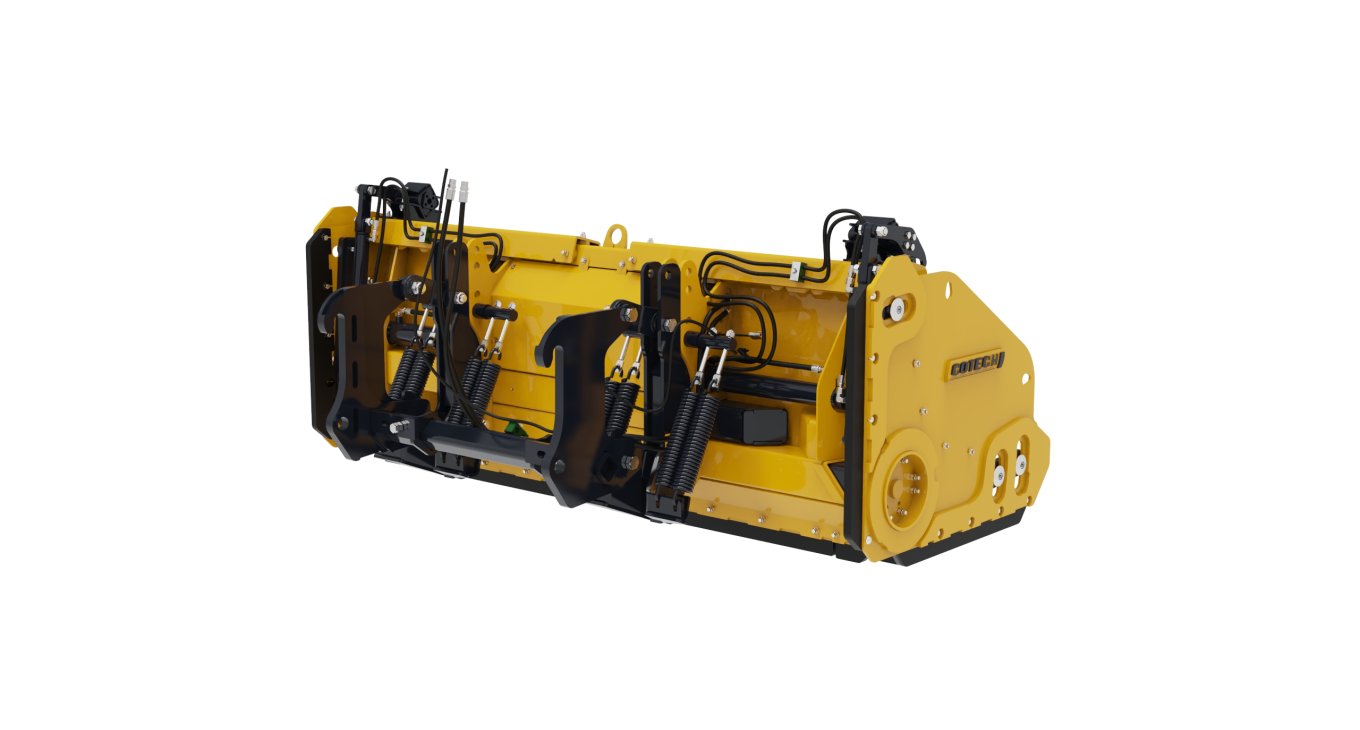

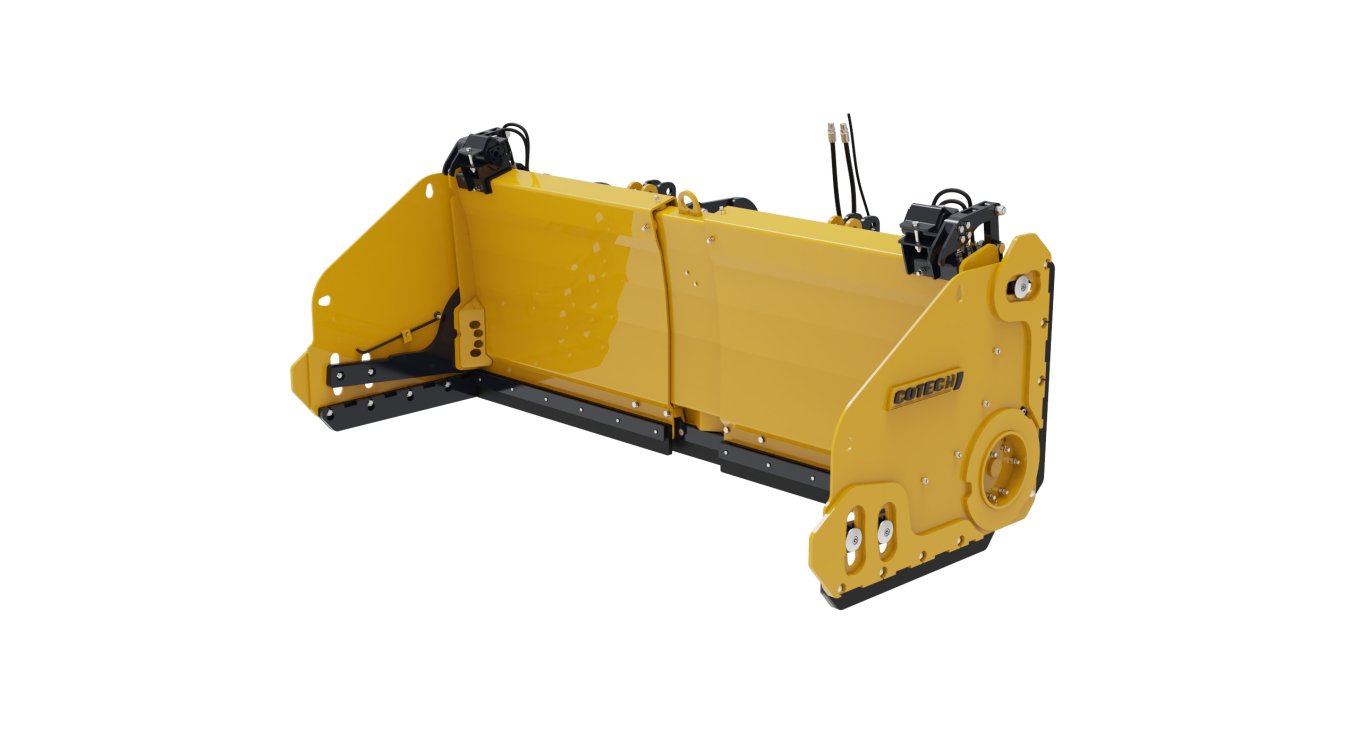

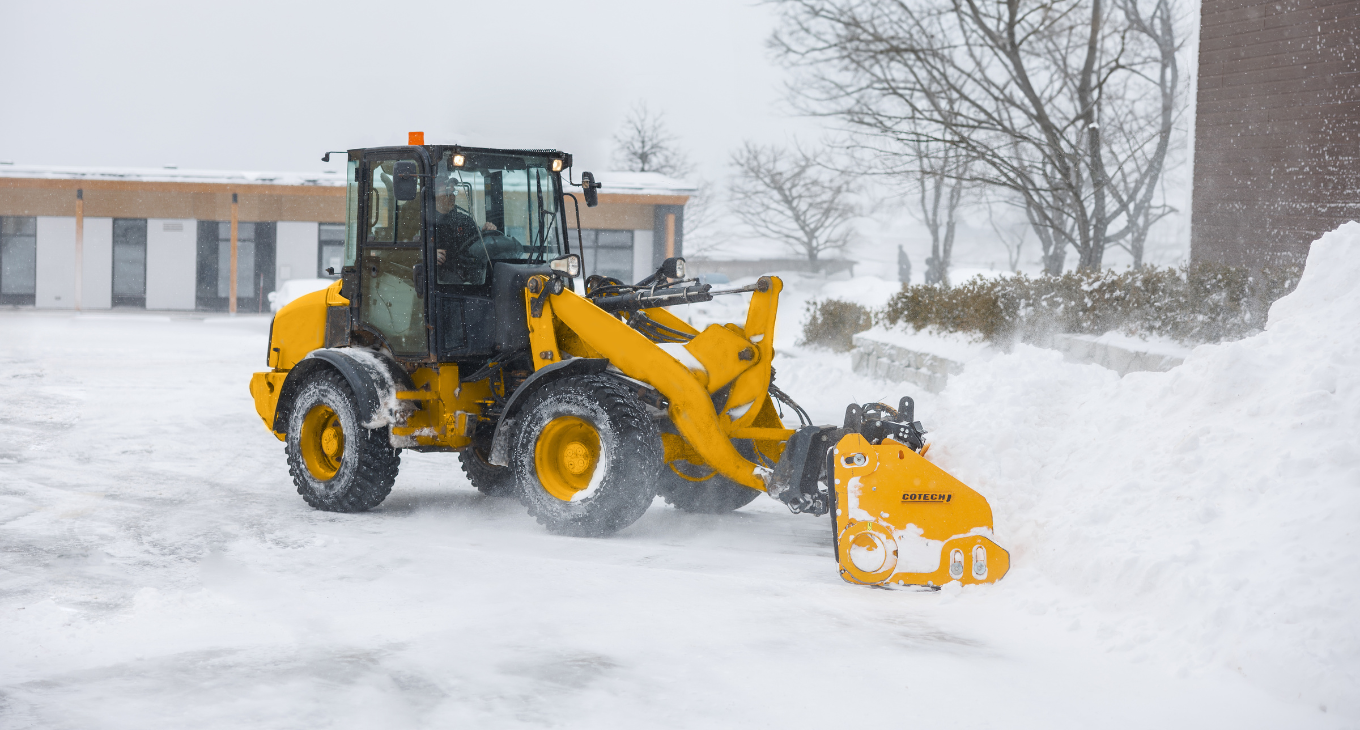

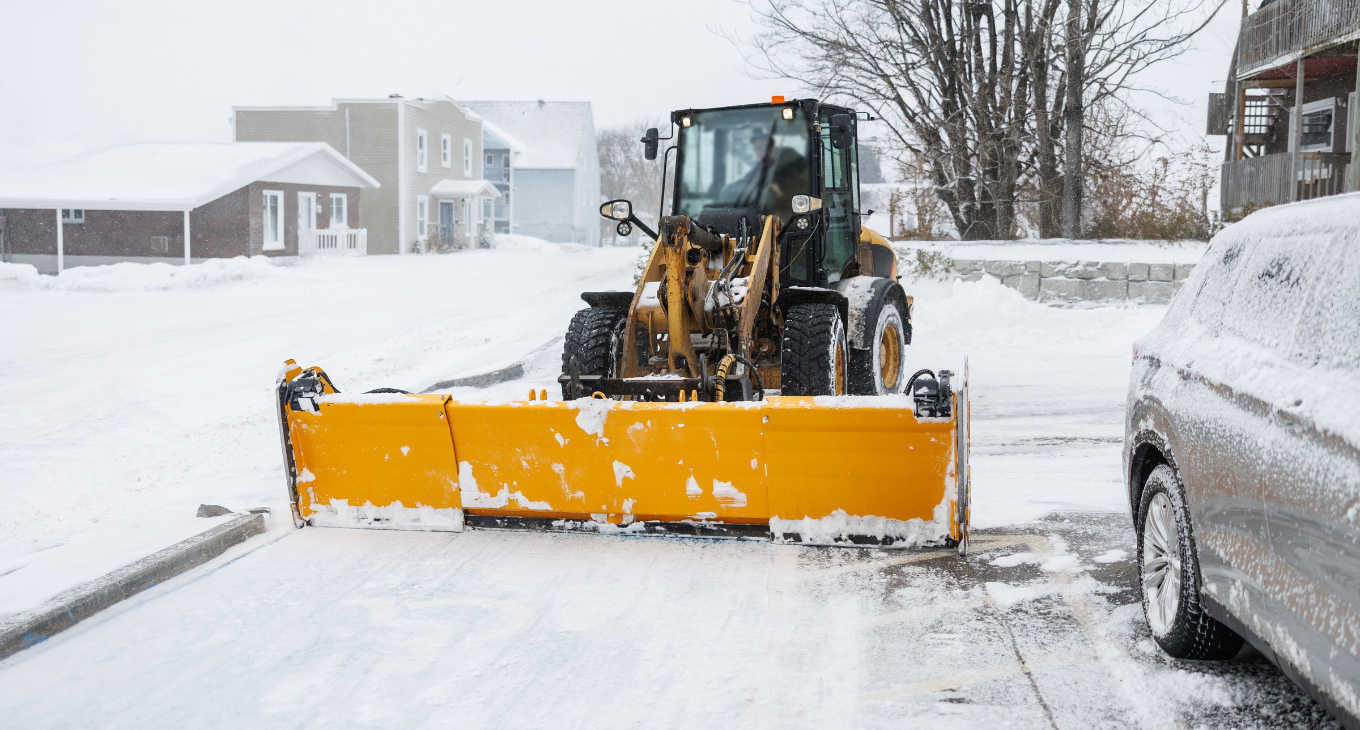

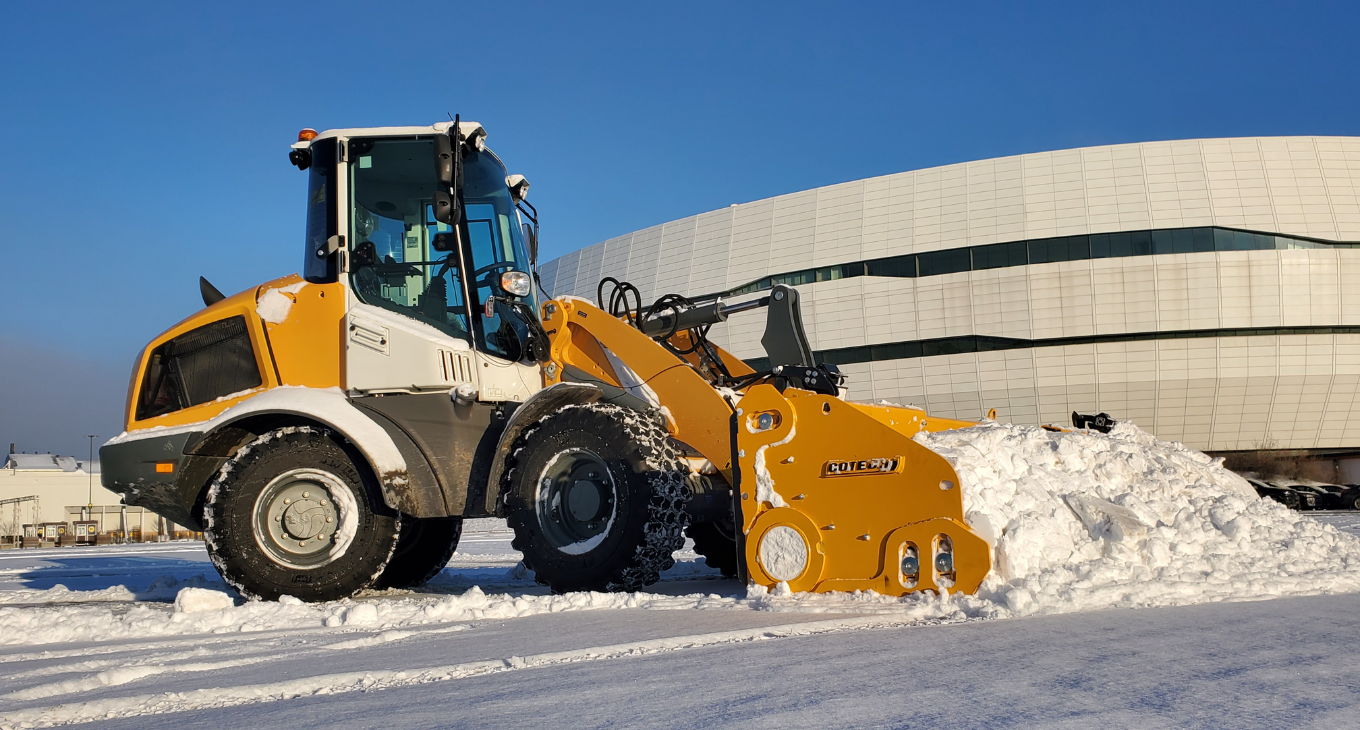

The PPCR-L snow plows are extendable with rotating wings, specially designed for wheel loaders under 13,000 lbs. The loader carriage system integrates the mechanical float and trip system. Their design is optimized for low-speed operation, ensuring performance during your residential and commercial snow removal activities. The PPCR-L snow plows excel in tight spaces and between vehicles in a parking lot. The extensions allow you to adjust the width of the plow according to your needs. The rotating wings enable the operator to clear snow near obstacles safely and quickly. Cotech's exclusive angular design minimizes snow and frost accumulation.
40-90 HP
| PPCR-L & PPCR-HD-L | |||||||||
| Models | Recommended Loader | Width Closed | Width Open | Height | Push Mode Depth | Pull Mode Depth | Weight | ||
| PPCR30610-L | 40 to 55 hp 4,000 to 8,000 lbs |
77" | 125" | 30" | 22" | 21" | 1,275 lbs | ||
| PPCR30712-L | 55 to 65 hp 5,000 to 8,000 lbs |
89" | 149" | 30" | 22" | 21" | 1,430 lbs | ||
| PPCR34712-HD-L | 65 to 75 hp 9,000 to 12,500 lbs |
90" | 150" | 34" | 28.5" | 25" | 1,600 lbs | ||
| PPCR34813-HD-L | 75 to 90 hp 10,000 to 13,000 lbs |
99" | 159" | 34" | 28.5" | 25" | 1,900 lbs | ||
