Compact snow pushers available in widths from 5 to 10 feet.

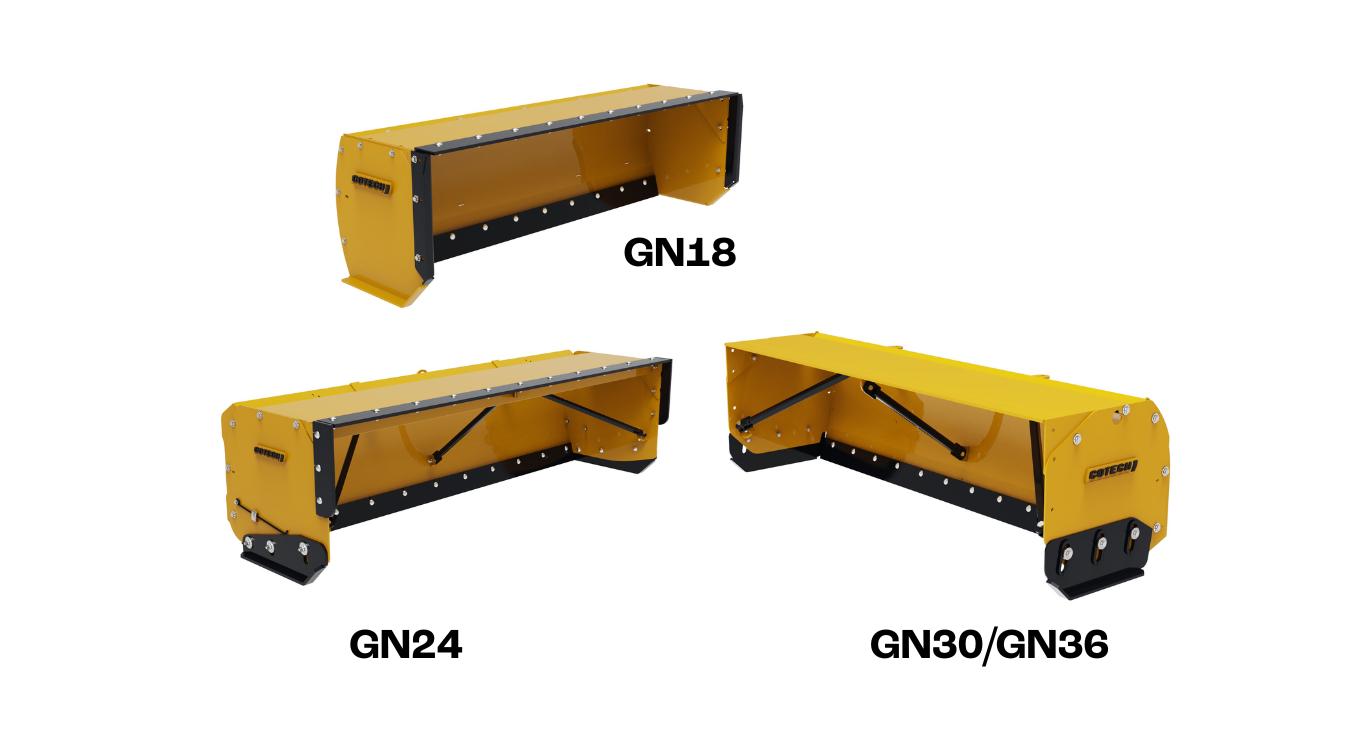

GN fixed plows are available in heights of 18, 24, 30, or 36 inches, depending on the weight and power of your equipment. The cutting edges are available in steel or UHMW. Shockproof wings are standard on the GN24, Gn30 and GN36 models and they absorb road imperfections in push mode. The closed top is bolted to facilitate maintenance and replacement of wear parts. Mounting brackets are also bolted and offered in several models.
15-150 HP
| GN18-DF-C | |||||||
| Models | Recommended Equipment | Width | Height | Cutting Edge Type | Weight | ||
| GN18-54-DF-C-A | 15 to 23 hp Lifting capacity inferior to 1,000 lbs |
54" | 18" | Steel | 205 lbs | ||
| GN18-60-DF-C-A | 15 to 23 hp Lifting capacity inferior to 1,000 lbs |
60" | 18" | Steel | 215 lbs | ||
| GN18-54-DF-C-T | 15 to 23 hp Lifting capacity inferior to 1,000 lbs |
54" | 18" | UHMW | 205 lbs | ||
| GN18-60-DF-C-T | 15 to 23 hp Lifting capacity inferior to 1,000 lbs |
60" | 18" | UHMW | 215 lbs | ||
| GN18-54-DF-C-TD | 15 to 23 hp Lifting capacity inferior to 1,000 lbs |
54" | 18" | UHMW & steel | 205 lbs | ||
| GN18-60-DF-C-TD | 15 to 23 hp Lifting capacity inferior to 1,000 lbs |
60" | 18" | UHMW & steel | 215 lbs | ||
| GN-DF-CA | ||||||
| Models | Recommended Tractor | Width | Height | Weigth | ||
| GN24-60-DF-CA | 25 to 45 hp 3,000 to 5,000 lbs |
60" | 24" | 392 lbs | ||
| GN24-72-DF-CA | 25 to 45 hp 3,000 to 5,000 lbs |
72" | 24" | 426 lbs | ||
| GN24-84-DF-CA | 25 to 45 hp 3,000 to 5,000 lbs |
84" | 24" | 470 lbs | ||
| GN24-96-DF-CA | 25 to 45 hp 3,000 to 5,000 lbs |
96" | 24" | 509 lbs | ||
| GN30-84-DF-CA | 45 to 85 hp 5,000 to 10,000 lbs |
84" | 30" | 695 lbs | ||
| GN30-96-DF-CA | 45 to 85 hp 5,000 to 10,000 lbs |
96" | 30" | 750 lbs | ||
| GN30-108-DF-CA | 45 to 85 hp 5,000 to 10,000 lbs |
108" | 30" | 810 lbs | ||
| GN36-96-DF-CA | 85 to 150 hp 10,000 to 20,000 lbs |
96" | 36" | 1,135 lbs | ||
| GN36-108-DF-CA | 85 to 150 hp 10,000 to 20,000 lbs |
108" | 36" | 1,320 lbs | ||
| GN36-120-DF-CA | 85 to 150 hp 10,000 to 20,000 lbs |
120" | 36" | 1,435 lbs | ||
