An essential tool for your excavator!

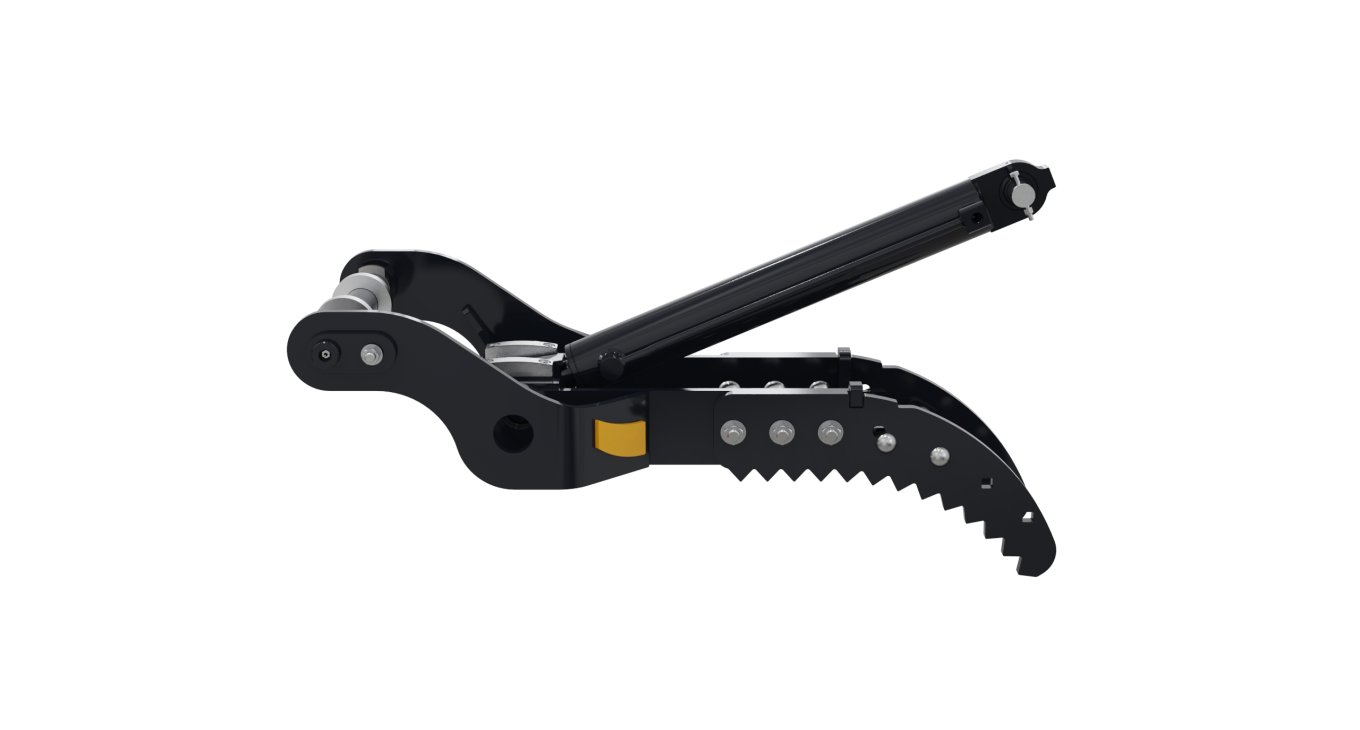

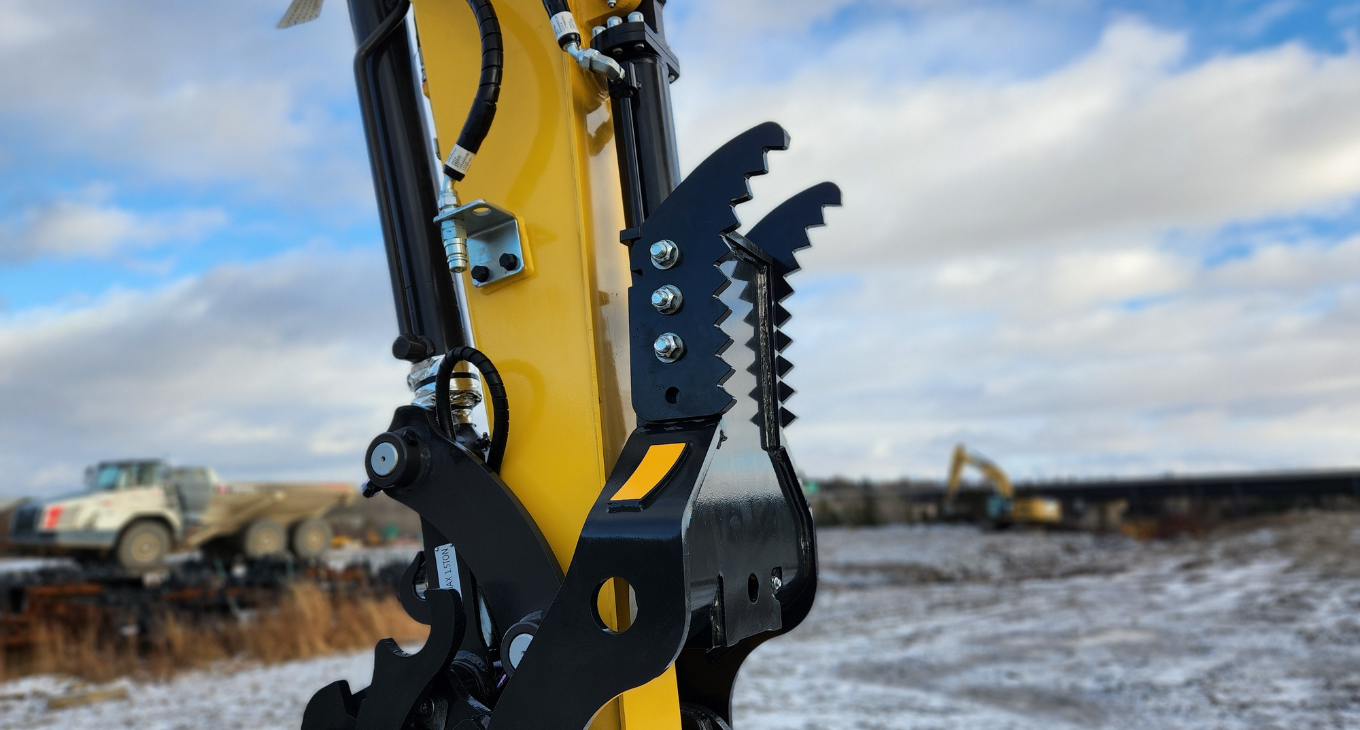

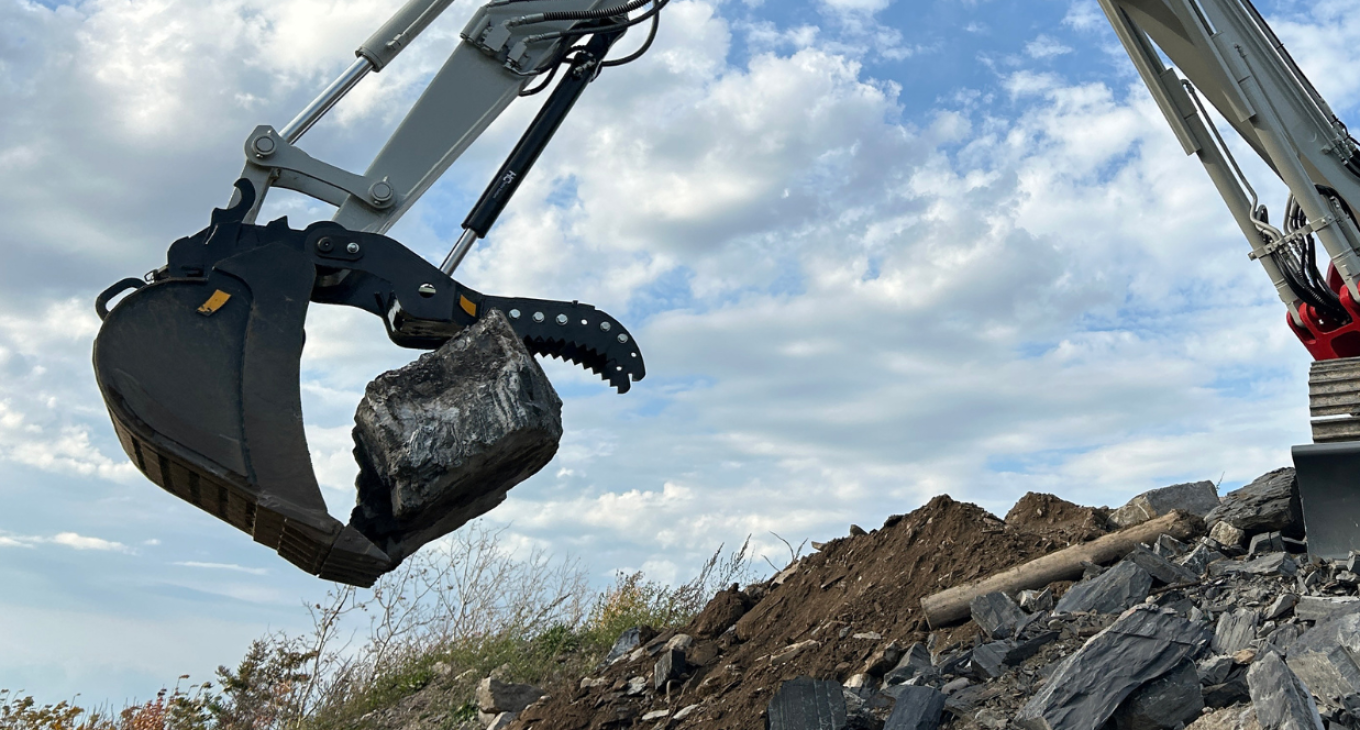

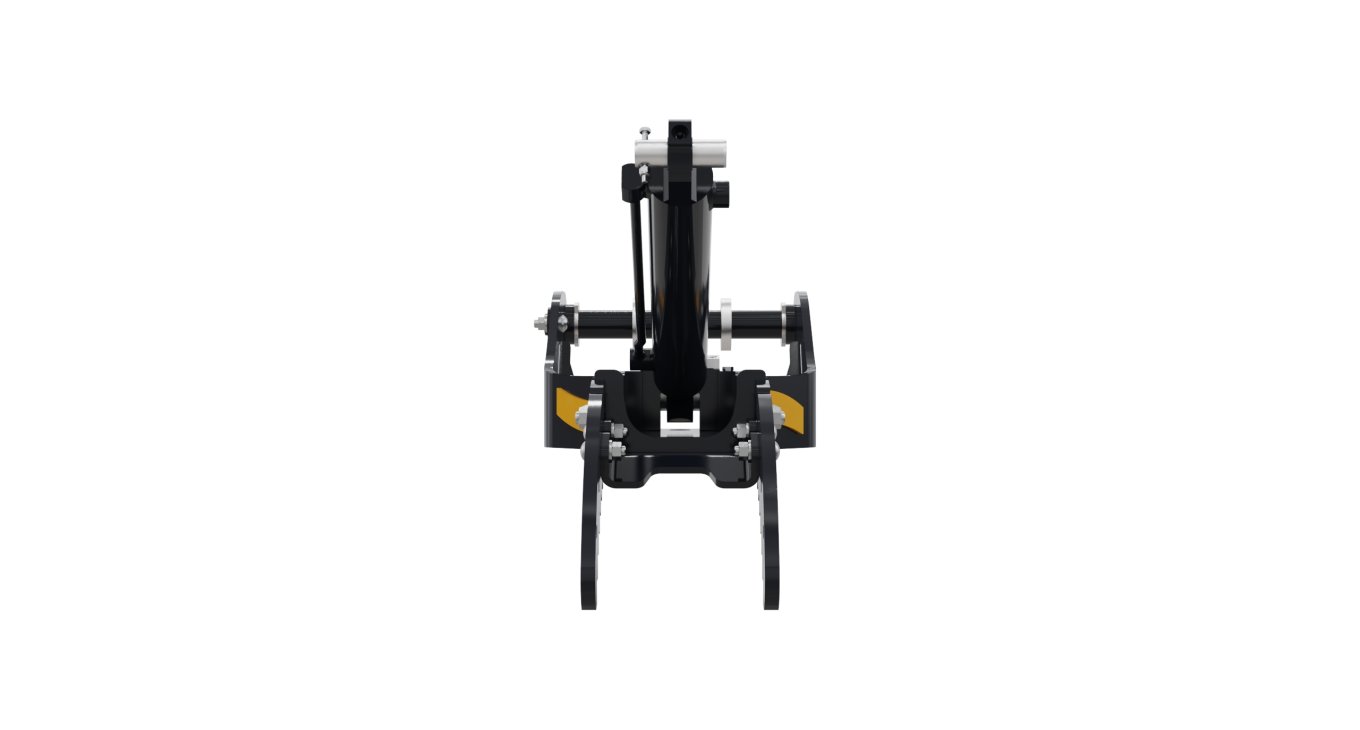

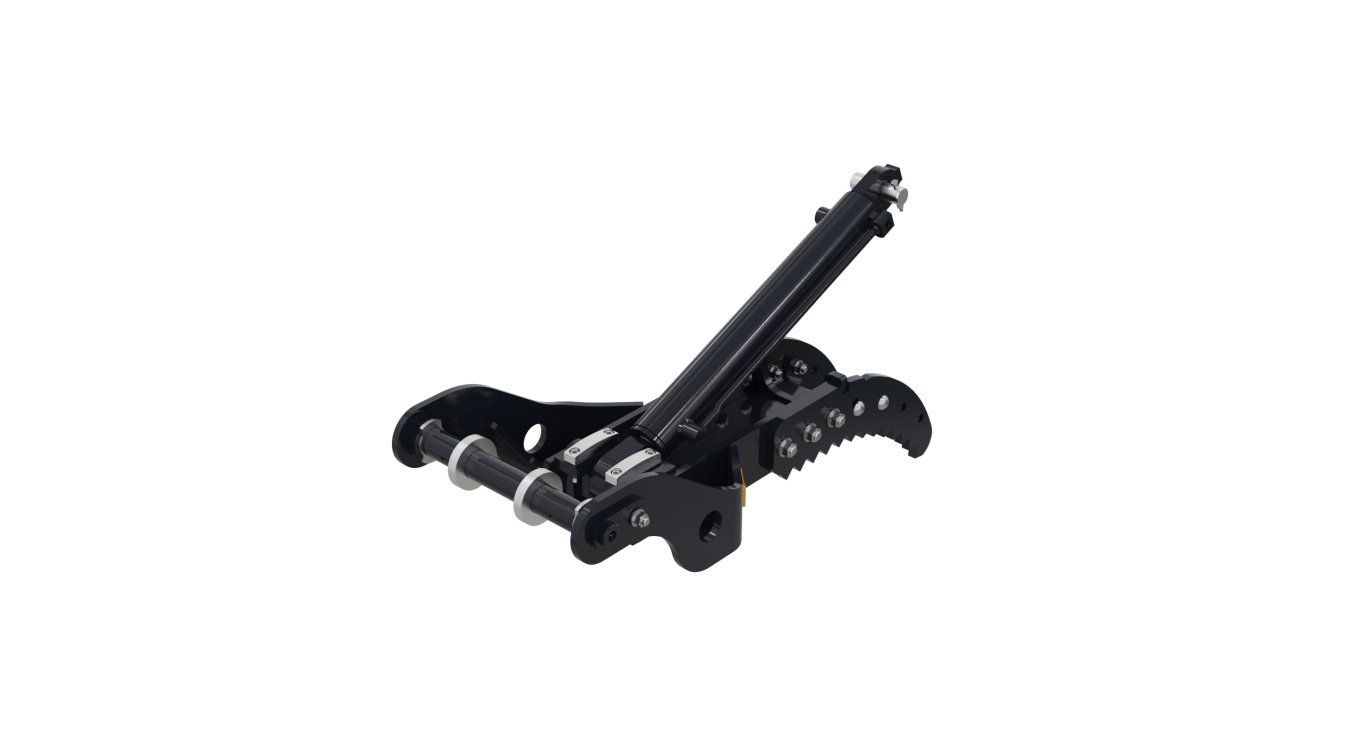

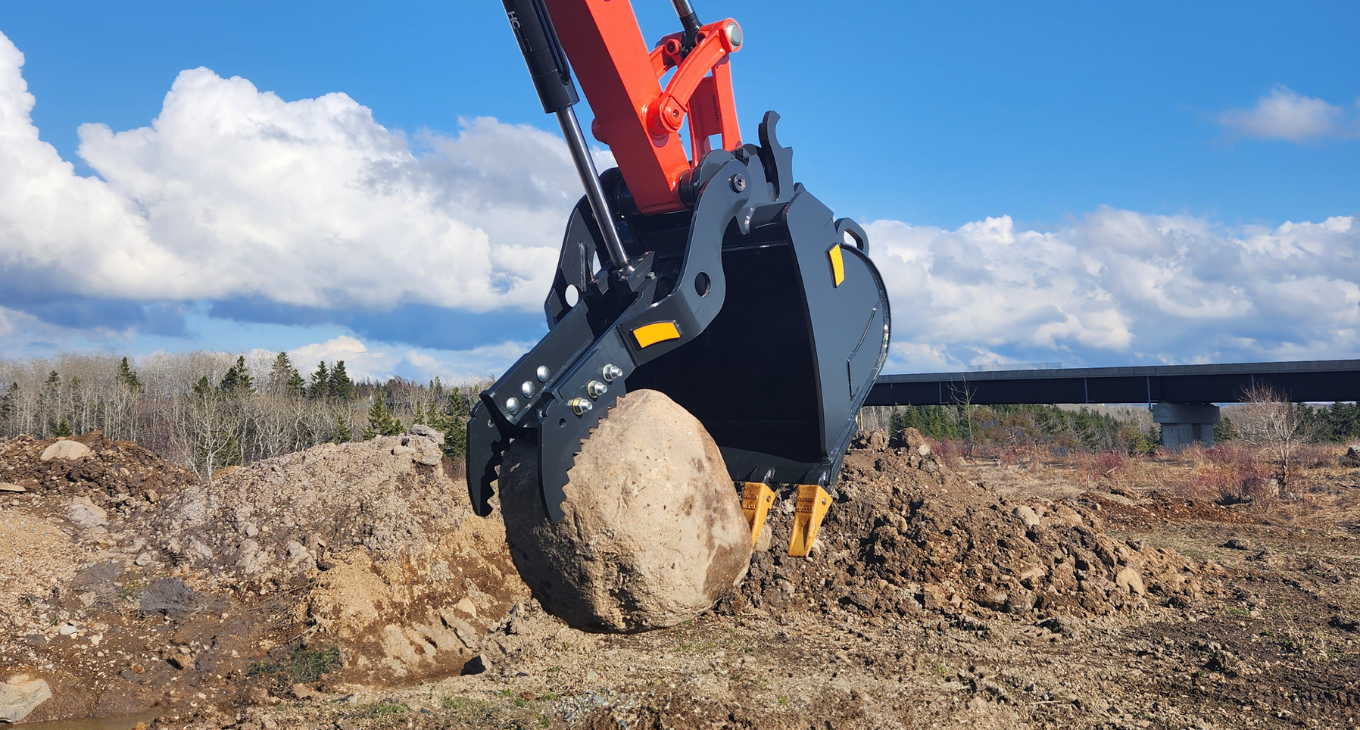

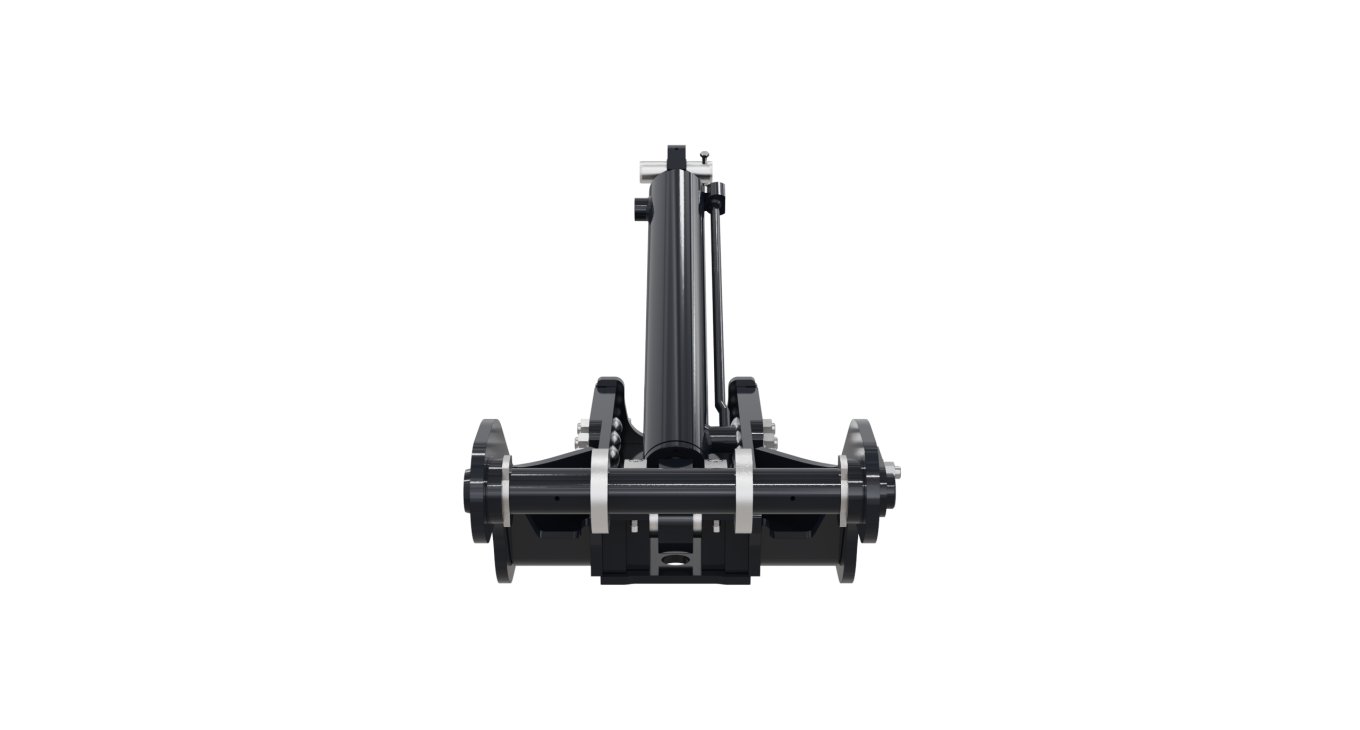

The design of the Cotech hydraulic thumb consists of three sections: the main structure, the hydraulic cylinder, and the interchangeable and adjustable teeth. The bolt-on adjustable teeth allows the thumb to be more effective and it can be tailored to specific working conditions or operator preference. You have the option to vary the length as well as the width and the number of teeth on your thumb. It uses the main axle to pivot, which allows it to follow the movement of the bucket at the teeth or blade level. This facilitates the grabbing and holding of material.
Its narrow structure improves visibility when coupling with an attachment. The cylinder is equipped with an end-of-stroke damper for smooth operation. Like most other Cotech products, it is made from Hardox 450 steel.
20-175 HP
| EPHB | |||||
| Models | Length | Number of Teeth |
Weight | Excavator Weight | |
| EPH3B-17 | 26" to 28" | 2 to 4 | 135 lb | 2.5 to 3 tons | |
| EPH3B-19 | 30" to 32" | 2 to 4 | 148 lb | 3 to 3.8 tons | |
| EPH3B-21 | 34" to 36" | 2 to 4 | 153 lb | 3.9 to 4.9 tons | |
| EPH3B-24 | 36.5" to 39" | 2 to 4 | 129 lb | 5 to 7 tons | |
| EPH4B | 41" to 44" | 2 to 4 | 285 lb | 7 to 10 tons | |
| EPH5B | 54" to 57" | 2 to 4 | 642 lb | 10 to 16 tons | |
| EPH6B | 66" to 70" | 2 to 4 | 869 lb | 17 to 23 tons | |

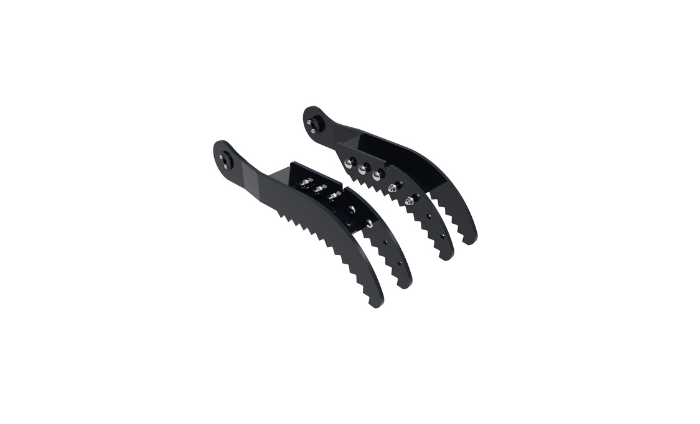

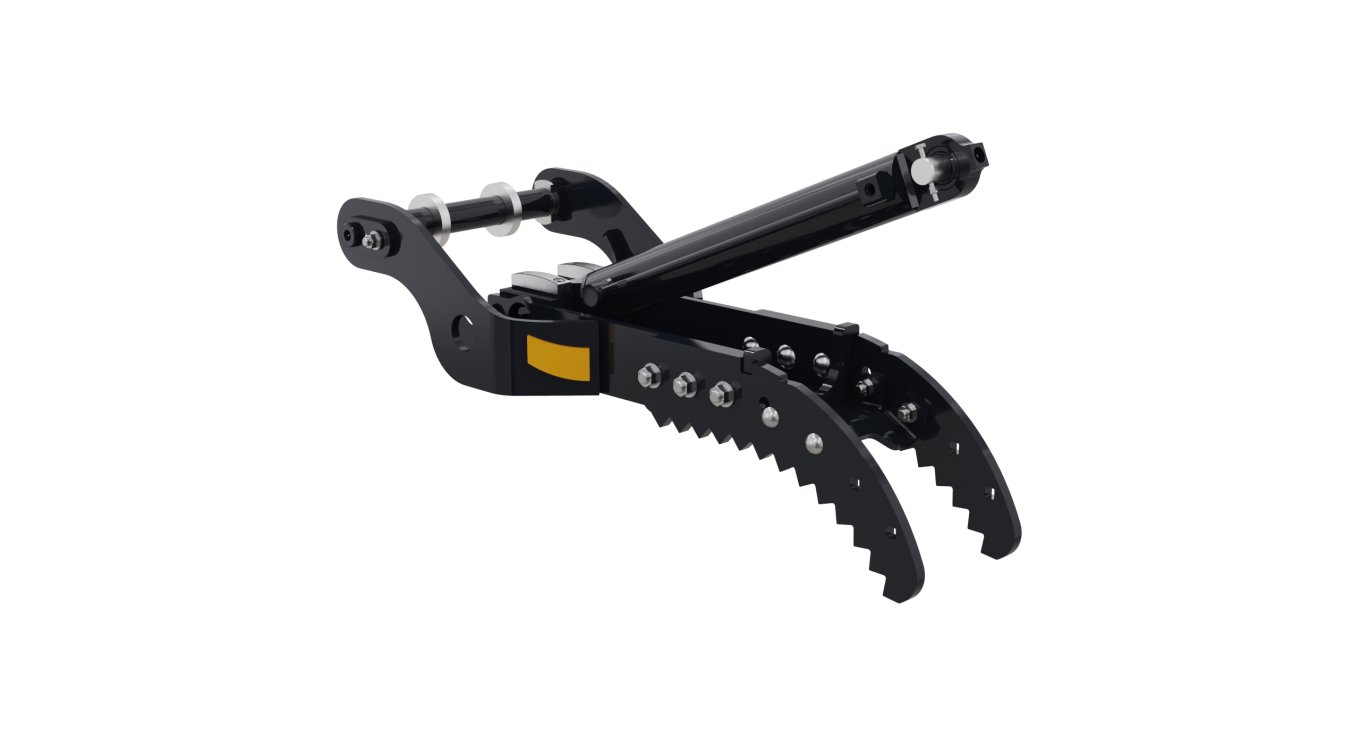

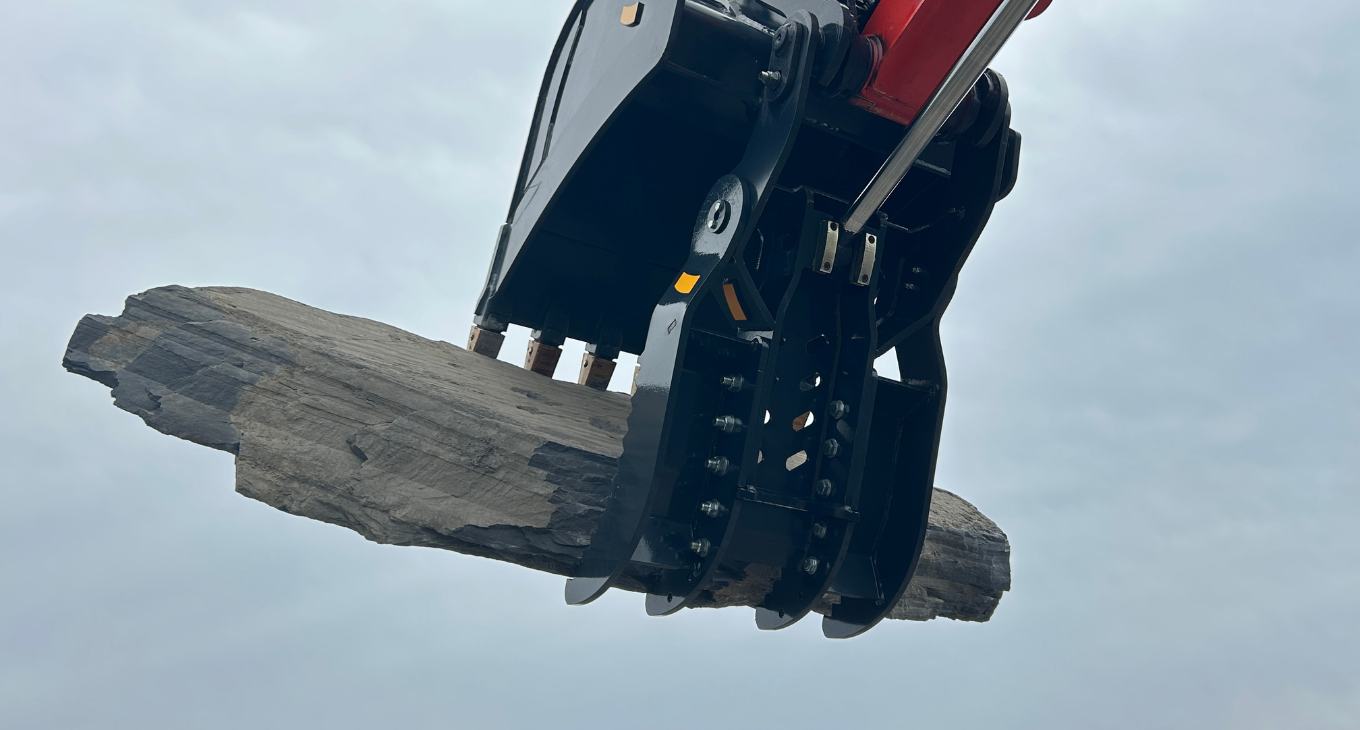

The adjustable hydraulic thumb widening kit enables to add 1 or 2 additional teeth to increase grapple strength and breakout force.
