PPCR-HD-ATPF with 3-point front linkage

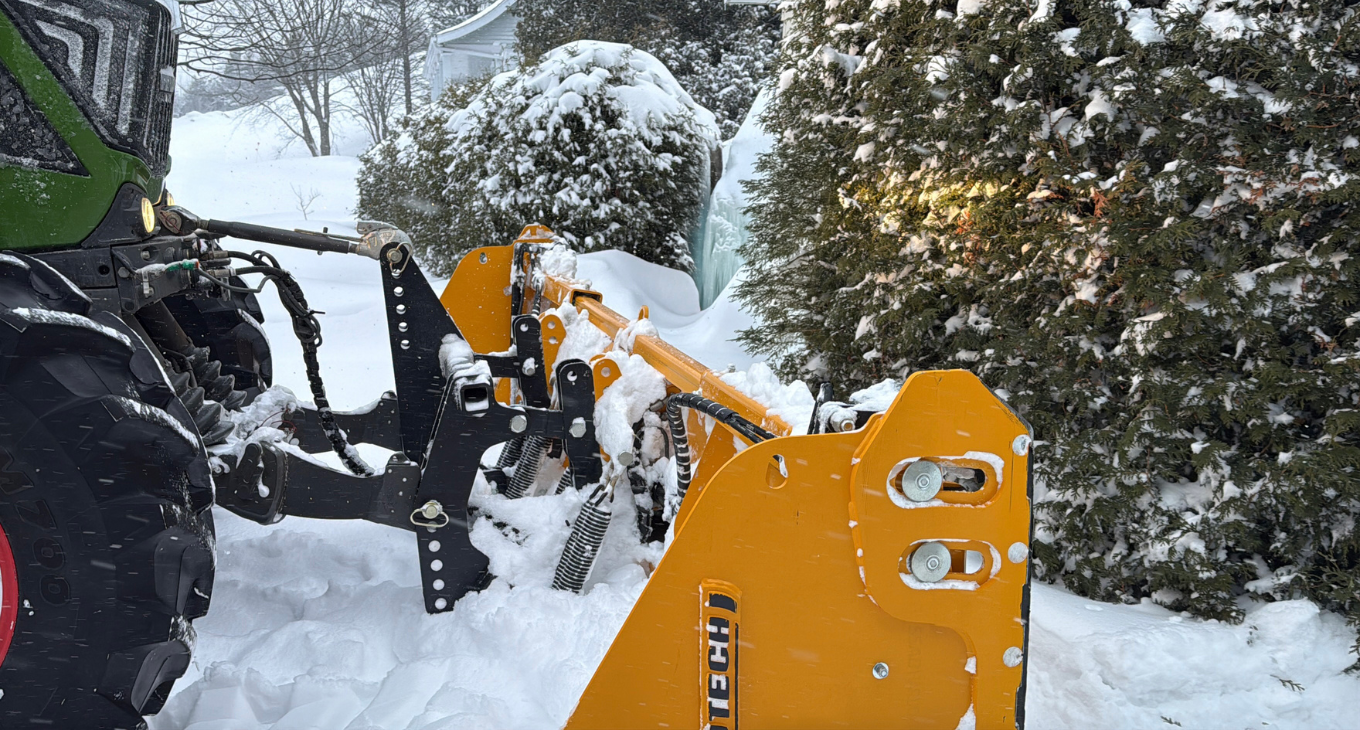

The ATPF 3-point hitch combines the trip system with the plow lifting mechanism. It is designed for agricultural tractors.

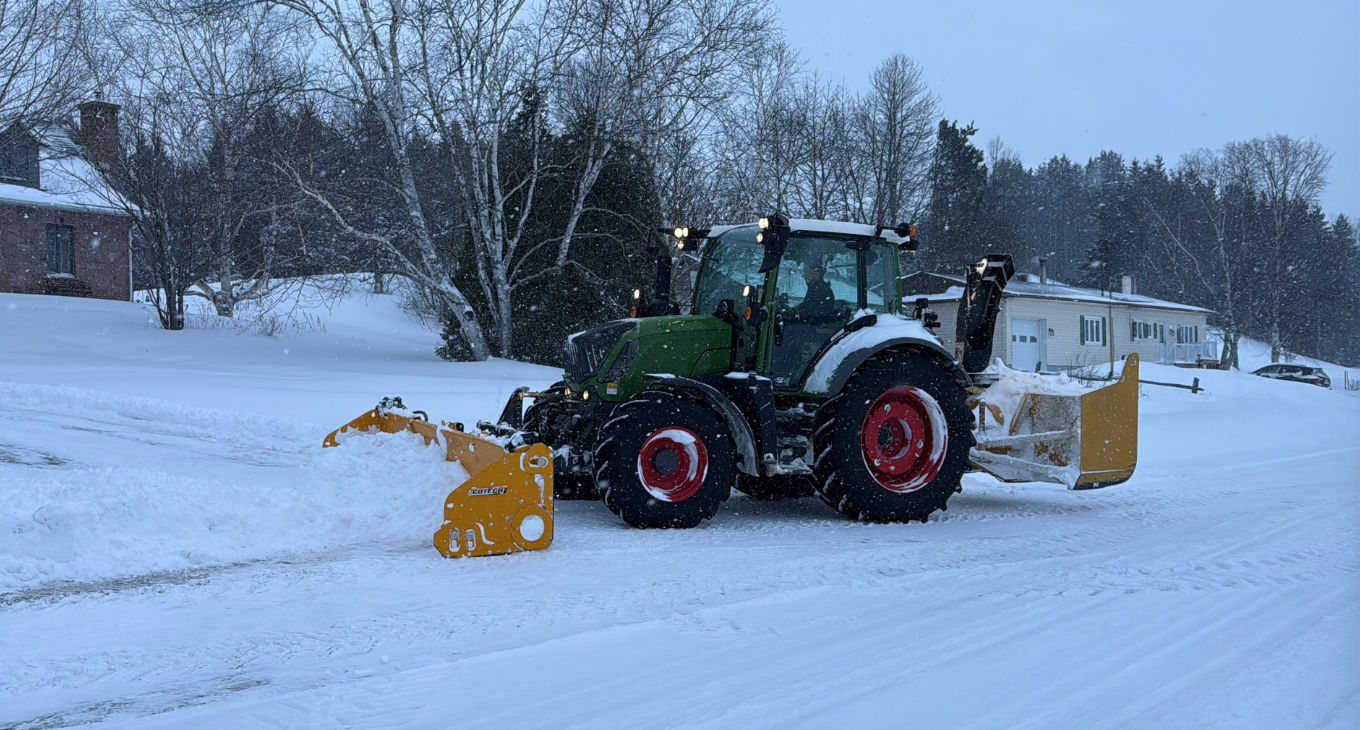

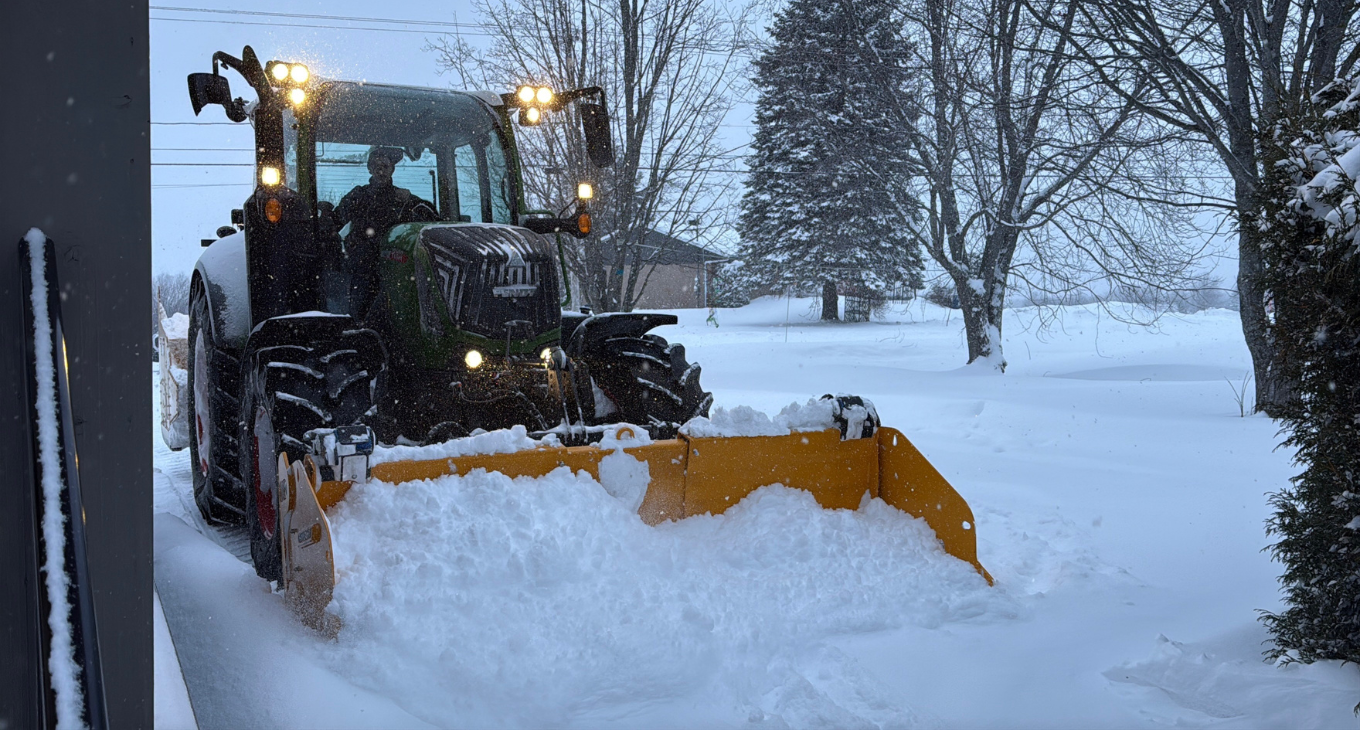

The PPCR-HD-ATPF snowplow series is specially designed for tractors equipped with a category 2 front linkage. Its design with trigger prevents damage in the event of impact. In addition, its integrated ground level ensures constant pressure of the plow during the tractor's hopping movements. The rotating sides and its extensions allow you to move a large volume of snow whether by pushing or pulling.

Recommended equipment

7000 lbs - 14000 lbs

85-130 HP

Specifications

PPCR-HD-ATPF
Models Recommended Tractor Width Closed Width Open Height Push Mode Depth Pull Mode Depth Weight
PPCR34712-HD-ATPF 85 to 115 hp
7,000 to 12,000 lbs
90" 150" 34" 28.5" 25" 1,600 lbs
PPCR34813-HD-ATPF 95 to 130 hp
10,000 to 14,000 lbs
99" 159" 34" 28.5" 25" 1,900 lbs

Description

The innovative PPCR-HD-ATPF attachment integrates into a single mechanism, the mechanical constant-pressure system, ground leveling, and the trip system:

  • Quick transition between push and pull modes increases efficiency and versatility for residential and commercial operations.
  • Rotating wings are simple to operate, making operator training faster and easier.
  • In push mode, the capacity of the rotating wings allows operators to move large volumes of snow, improving profitability by reducing execution time.
  • Extendable wings supported by three points, providing superior rigidity in transport, push, and pull modes.
  • Cotech’s exclusive angular design minimizes the risk of freezing and snow build up.
  • Improves tractor maneuverability.
  • Enhances operator comfort.

The PPCR34-D snow plow offers a multitude of advantages:

· The ability to quickly switch from pushing snow to pulling, increases productivity and versatility of the plow

· The rotating sides are very simple to use.  No need for special training.

· The benefit of the sides rotating, is that you engage the full use of their capacity allowing you to move a higher volume of snow.

· The front extensions of the PPCR are reinforced to remain absolutely rigid when open, resulting in a seamless cleared pass
